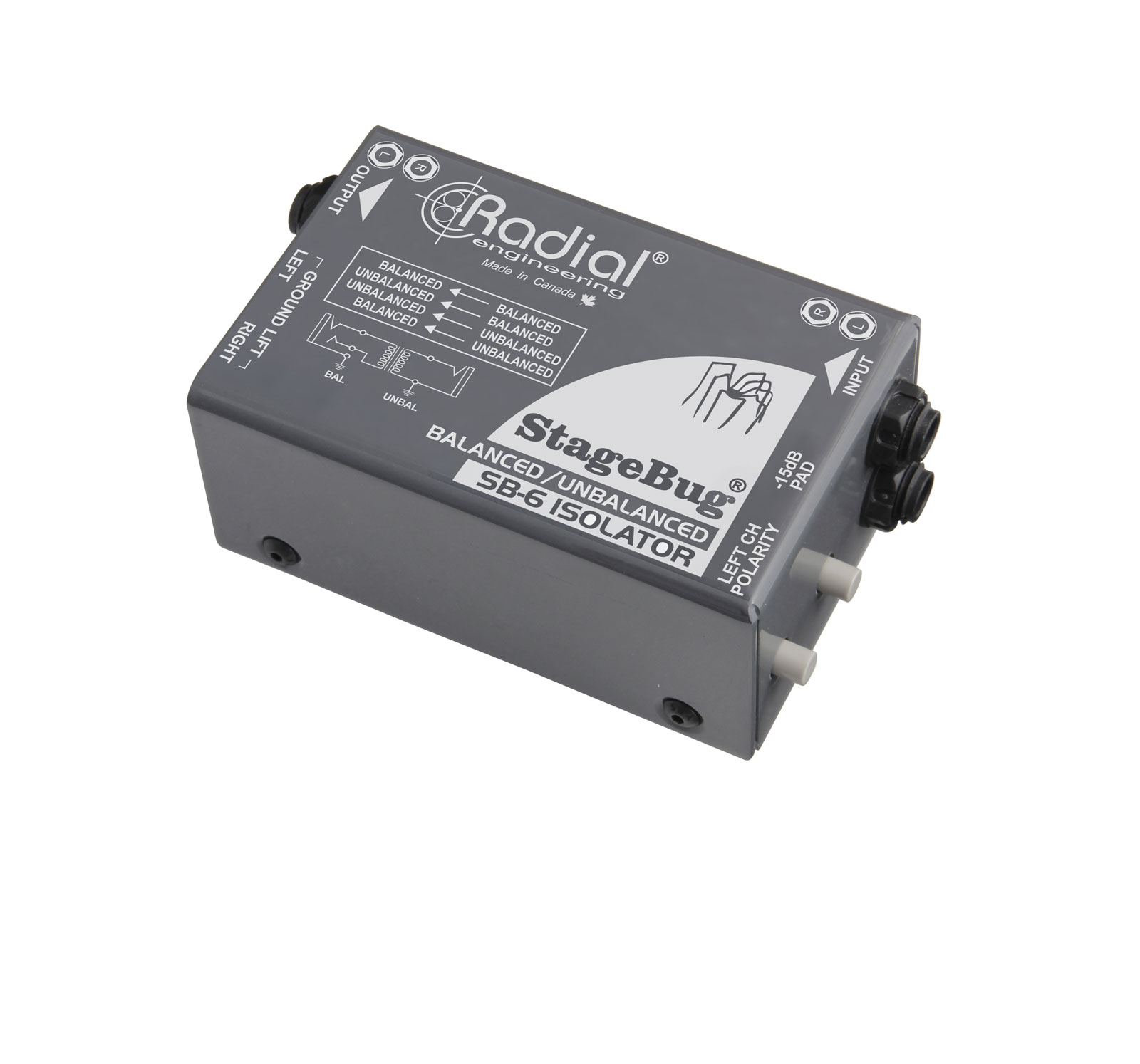

The Radial StageBug® SB-6 is a high performance 2-channel passive audio isolator designed to accommodate both balanced and unbalanced signals and work effectively at eliminating noise when used with instruments, consumer electronics as well as professional line-level devices.
The design begins with ¼" TRS inputs and outputs to accommodate both TRS and mono type connectors. The unique circuit retains the balanced signals or automatically converts them from hi-Z to lo-Z (¼" mono to TRS) or lo-Z to hi-Z (1/4"TRS to mono) depending on the connector in use. You simply connect and the SB-6 does the work for you! Inside are two ultra-linear Eclipse transformers that sound great as they deliver ruler flat performance from 20Hz to 20kHz. This is augmented with a -10dB input pad to handle extra loud source devices and a polarity reverse on output B for phase aligning stereo signals. As the circuit is passive, no power is required – simply plug in and play. As with all Radial products, the SB-6 is made in Canada and features 16 gauge steel construction for use on the road and finished in a durable powder coat finish.
These features combine to make the SB-6 Isolator a wonderful solution to help rid system noise in two channel audio systems, stereo guitar racks and pedalboards.
Main features - Isolator for balanced and unbalanced signals - Eliminates hum and buzz caused by ground loops - Exceptionally linear from 20Hz to 20kHz - Automatically configures for hi-Z or lo-Z signal chains
Specifications - Audio circuit type: Passive Transformers - Frequency response: 20Hz-20KHz +/-1db - Dynamic range: >140db - Maximum input: >+25dBu - Gain: -2dB - Total harmonic distortion: <0.0008% @ 1kHz - Phase deviation: >5° @ 30Hz - Input impedance: Varies with Load/47K - Output impedance: 600Ω - Transformer: Eclipse Custom - Input pad: -15dB - Polarity: 180° reverse - Ground lift: Disconnects TRS sleeve at output - Input connector: 1/4" TRS phone - Output connectors: 1/4" TRS phone - Power: Passive, no power required - Conditions: For use in dry locations only between 5°C and 40°C - Size (L x W x D): 114 x 47 x 34mm (4.5" x 1,85" x 1.35") - Weight: 408g (0.9 lbs)
