LD Systems CURV 500 PS

Register here and stay informed about the next restock

Description

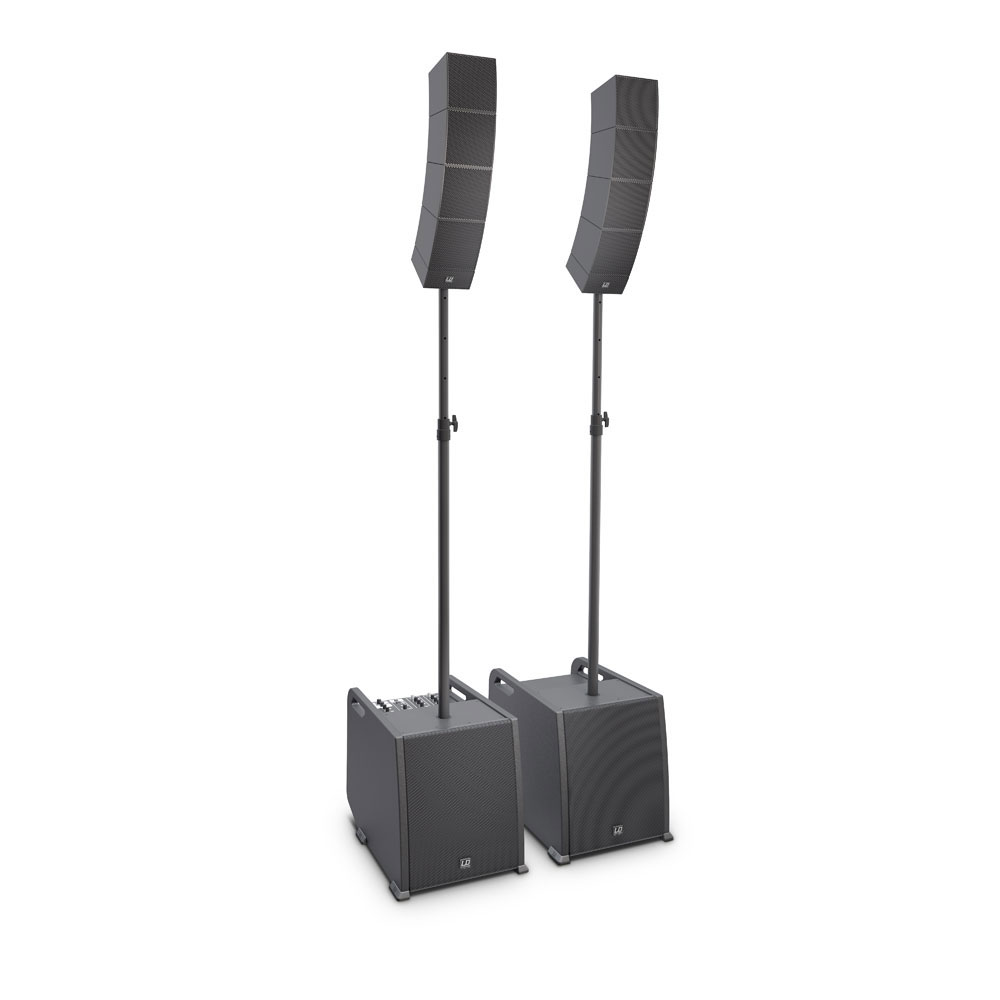

First really portable line line, the CompactCurv 500 system is scalable, and includes up to 4 monobloc satellites in lockable aluminum, connected to a plug and play smartlink® adapter. The speakers of the Array line only measure 12 x 12 cm, each equipped with an HP of 4 "and a triple tweeter of 1", rely on technologywaveahead® to produce high definition, powerful sound, with punch and punch and punch A superb balance.

The subwoofer which constitutes its basic support, is equipped with a boomer of 10 ", and also incorporates the amplifiers in class D of the CURV 500 system, with circuits of Limiter, protection against short-circuits, thermal and overloads, as well as a 4-channel blender with 16-bit digital effects presets and a Bluetooth® receiver. The connector is complete, on Combo and Speakon compatible; 500 also includes 4 digital presets system, an M20 threaded base for support bar and 3 ergonomic handles, for better portability. Available in 3 variants declined for the needs of the live performance and the fixed, and light installation, the LD Systems system Curv 500 Assur e an extended vertical and horizontal cover; Its ?all in one? design is practical, and gives impressive results.

with an effective power of 920 watts and a level of peak pressure of 134 dB SPL, the curv 500 power set integrates two SmartLink® adapters as well as two support bars for speakers and two cables.

designed in Germany.

Characteristics
? Type: Line Portable Line System
? Nominal output power (eff.): 920 W
? Number of Satellites Array 8
? Number of SmartLink® adapters: 2
? Number of low boxes: 2
? Maximum sound pressure level (continuously): 128 dB SPL
? Maximum sound pressure level (ridge): 134 dB SPL
? Basse box: bass reflex, boomer 10 "(25 cm)
? Array satellites: medium: 1 x 4" / tweeters: 3 x 1 "with Waveahead® / 16 ohms technology
? : from 47 Hz to 20 kHz
? Dispersion angle (H X V): 110 ° horizontal, 10 ° vertical by satellite
? Amplification: class d
? Output power (effective / Crête): Basse box: 300 W / 1200 W, Array satellites: 2 x 160 W / 2 x 640 W; Extension Base box: 300 W / 1200 W (satellite)
? Protections: by DSP - Limiter Multiband, short-circuit, overheating, overload
? Basse box functionality: 4-channel blender, Bluetooth®, 16 presets digital multieffet, 4 DSP system presets, M20 threaded wells, 3 ergonomic handles
? The subwoofer: Potentiometers Input Level (CH1-4), Hi-Z selector, Hi/Low EQ (CH1-2), DFX Effects (CH1-2), DFX Presets, DSP Presets, Blutetooth Link selector, Mono/Mono Selector/ Stereo, Sub Level potentiometers and hand on Vel
? Indicators on subwoofers: signal, limit, Bluetooth®, Power
? Connectors on low box: 1x mic/hi-z (xlr/jack 6.35 mm combo), 1x mic (xlr/jack 6.35 mm), 2x line (xlr/jack 6.35 mm), mini -Jack 3.5 mm, 2 x array satellite out (Speakon compatible), Line Out (XLR), System Out (XLR 5 points)
? Material Base box box: plywood
? Basse box surface finish: structure lacquer
? Functions of Arrays satellites: Waveahead® technology, integrated passive filter, metal grid
? Material Satellite Box Array: molded aluminum
? Array satellite surface finish: sprayed paint
? Smartlink® adapter features:
? SmartLink® adapter connectors: 1 x Speakon compatible, 1 x Phoenix
? SmartLink® adapter material: molded aluminum
? Smartlink® adapter surface finish: sprayed paint
? Dimensions of bass box (W x H x D): 325 x 383 x 491 mm
? Satellite dimensions Array (W x H x D): 122 x 122 x 122 mm
? Dimensions SmartLink® adapter (W x H x D): 122 x 57 x 122 mm
? Mass of bass box: 16.5 kg
? Array satellite mass: 1.7 kg
? Mass adapter smartlink®: 0.6 kg

Brand reference number: LDCURV500PS
