has its own start to a stereo reverb processor as well as a two-band equalizer in a tray.
Once you've polished your mix with the 45mm faders, pan buttons, reverb and EQ, save it to the dedicated stereo master track.
Your mix can be processed by mastering effects such as equalizer and limiter for a nervous and modern sound.

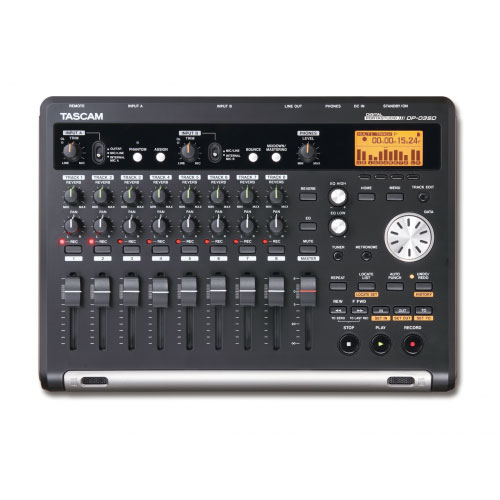

When you are satisfied, transfer your mix to a computer via USB 2.0. The TASCAM DP-03SD is the easiest way to deliver the best sound quality and share your music with the world.

• Recording / playback in PCM format 44.1 kHz / 16 bit, on SD / SDHC memory card

• Simultaneous recording on two tracks Record a stereo source, or two independent mono sources

• Simultaneous playback of eight tracks. Dedicated controls on each channel (volume, pan, effect ...) to facilitate mixing

• Dedicated stereo track for mixing. Mix your song as a transferable stereo file on a computer, for example MP3 encoding

• Built-in stereo electrostatic microphone. Record directly in stereo on two tracks, instantly, without having to wire anything

• Two microphone inputs on XLR, with phantom power. Plug in your favorite studio electrostatic pickups

• Two line inputs on TRS jack, one of which is switchable to high impedance guitar input (Hi-Z). Connect directly to the DP-03SD a guitar or electric bass, or synthesizers, a drum machine, etc..

• Line output on RCA connectors. For direct connection of your active plays or your amplifier

• Headphone output with volume control

• Bass / treble corrector on each track and on both inputs. Amplify or attenuate bass and / or treble on each sound source, via the dedicated buttons

• Integrated reverb, to refine your mixes

• Integrated mastering effects. Get the most out of your mix with a 2-band EQ, Mono / Multiband Compressor and Level Normalizer to get a higher overall level and better sound density

• Auto Punch in / out function (partial re-registration automation). Record a marked section in advance while playing or singing without having to press a key

• Track Bounce function. Use more than 8 tracks in your mix, by premixing on several tracks already recorded tracks

• Workstation style editing tools: copy, move, cut, etc.. Edit your tracks like a pro: tighten your timing, create loops, eliminate unwanted noise, etc..

• Multi-level undo history (Undo / Redo). Cancel / Restore multiple work steps when you make a mistake (including editing functions)

• Memorization of locations (markers). Place markers to easily spot the beginning of verses, a solo, the input of a voice, etc..

• Integrated tuner and metronome

• USB 2.0 port. Allows you to transfer project data, one way or the other, or import / export WAV audio files from / to a computer

• 9 faders of 45 mm

• Optional TASCAM RC-3F crankset with three pedals and assignable functions

• Choice of operating mode of the pedalboard


General SD Memory Card (512 MB - 2 GB) or SDHC Card (4 - 32 GB)

File system

MTR score: TASCAM proprietary format FAT score: FAT32 Built-in microphones 2 omnidirectional static pickups Analog inputs and outputs

Inputs A and B, balanced XLR

Nominal input impedance 2.4 kohms

Nominal input level -16 dBu

Maximum input level 0 dBu

Input A, symmetrical jack 6.35 mm TRS

INPUT A switch in MIC / LINE position

Nominal input impedance - 10 kohms

Nominal input level +4 dBu

Maximum input level +24 dBu

INPUT A switch in GUITAR position

Nominal input impedance? 1 Mohm

Nominal level of input -2 dBV

Maximum input level +14 dBV

Input B, balanced TRS jack 6.35 mm

Nominal input impedance - 10 kohms

Nominal input level +4 dBu
Maximum input level +24 dBu

RCA line output (unbalanced)
Output impedance output 1 kohm

Nominal level of output -10 dBV

Maximum output level +6 dBV

Stereo headphone jack output 6.35 mm

Maximum output power 2 x 40 mW (for DHT + B:? 0.1%, under 32 ohms)

Other entries and exits

USB port

Mini-B Type USB Connector USB 2.0 HIGH SPEED Format, for Mass Storage Class

REMOTE Port 2.5mm Jack (for RC-3F crankset)

Audio Features

Frequency response 20 Hz - 20 kHz, +1 dB / -3 dB

Signal-to-noise ratio? 90 dB

Total harmonic distortion? 0.01%

Windows Pentium 300 MHz or faster computer requirements 128 MB RAM or more

USB port (USB 2.0 recommended) Macintosh Power PC, iMac, G3, G4 266MHz or faster 64MB RAM or more

USB port (USB 2.0 recommended)

USB Controller Recommended Host Intel Component Set

Compatible operating systems Windows XP, Windows Vista, Windows 7, Windows 8 (8.1 included) Macintosh Mac OS X 10.2 or later

Food and other features

TASCAM PS-1225L External Power Adapter (Supplied)

AC power supply AC 100 - 240 V, 50/60 Hz, 1 A

12V, 2.5A DC DC Power Output

Power consumption 5 W

Dimensions (W x H x D) 290 mm x 54 mm x 207 mm

Weight 1,8 kg

Operating temperature 5-35 ° C
Brand reference number:DP-03SD
