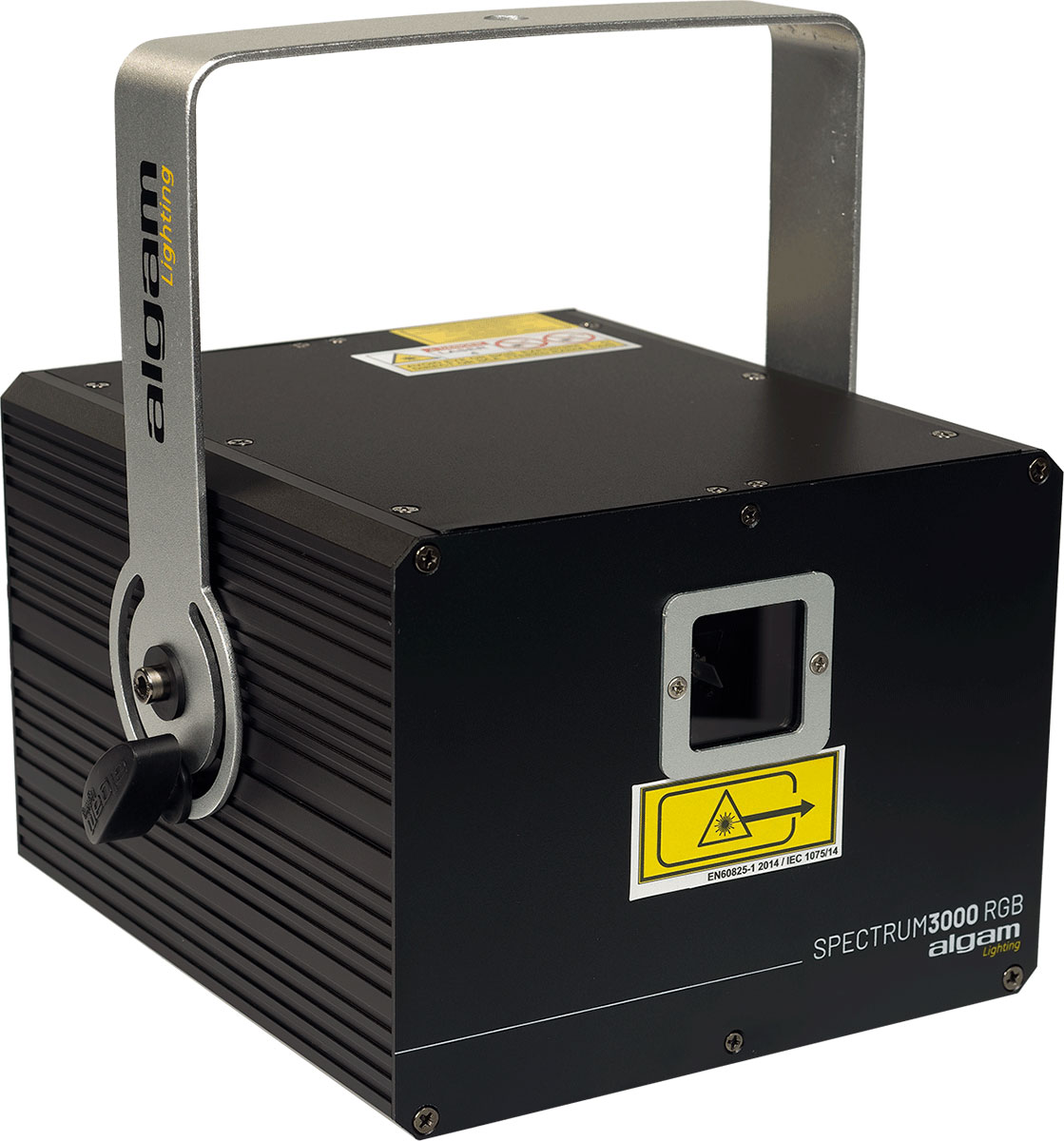

Essential Information About the SPECTRUM 3000 RGB Laser
- 3 W RGB Power (red 600 mW, green 800 mW, blue 1600 mW) for brilliant beams and perfectly balanced colors.
- Professional Control via ILDA and DMX 6/34 channels, with 2000 internal programs, Auto and Musical modes.
- Precise Scanning thanks to 20 Kpps mirrors for sharp figures, tunnels, waves, and geometric patterns.
- Built-in Safety: key switch, interlock connector, EN60825-1:2014 compliance, compact and robust aluminum chassis.
A Laser Designed for Stage, Events, and Clubs
Designed for professional shows, the "SPECTRUM 3000 RGB" enhances your stages, dancefloors, and live performances. In clubs, at weddings, student parties, or stage mapping, its dense beams reach their full potential with a slight smoke diffusion. Its carefully crafted aluminum construction and ventilated cooling ensure optimal reliability for fixed installations as well as touring.
The Choice of Lighting Technicians and Demanding DJs
Ideal for mobile DJs, lighting operators, event providers, and venue managers, this class 4 laser meets the strictest specifications. Show creators will appreciate the freedom offered by ILDA to design custom patterns, while daily operation benefits from internal programs and streamlined DMX control.
Features and Innovations
The SPECTRUM 3000 RGB combines a balanced RGB source and a 20 Kpps scanner to deliver sharp and smooth figures. The 2000 onboard presets cover classic animations (tunnels, cones, waves, circles, and geometric traces) with adjustable speeds and sizes via DMX. The ILDA interface provides access to drawing and playback of complex scenes from your favorite software. In operation, the Auto and Musical modes quickly adapt to the atmosphere, while the DMX configuration in 6 or 34 channels allows either simplified control or advanced parameter management. Safety is central to the device with key switch, interlock, and compliance with EN60825-1:2014 standard.
Technical Specifications
Light Sources
- 1 x red laser 600 mW / 638 nm
- 1 x green laser 800 mW / 520 nm
- 1 x blue laser 1600 mW / 450 nm
- Total power: 3000 mW
Scanning and Effects
- Mirror motorization: 20 Kpps scanner
- Number of internal programs: 2000
- Modes: Auto and Musical
Control and Connectivity
- DMX: 6 or 34 channels
- DMX input/output: 3-pin XLR
- ILDA interface: input/output
Safety and Compliance
- Class 4 laser with safety key and interlock connector
- Compliant with European standard EN60825-1:2014
- Protection rating: IP20 (indoor use)
Construction and Cooling
- Chassis: aluminum
- Cooling system: fan
Power Supply
- Power supply voltage: 100-240 V, 50/60 Hz
- Power consumption: 60 W
Dimensions and Weight
- Weight: 2.8 kg
- Dimensions: 220 x 220 x 150 mm
Package Contents
- Delivered with power cable and cable tie velcro
- Mounting yoke and safety sling
