Belt Belt Transmitter - H56 Band - 518-562 MHz

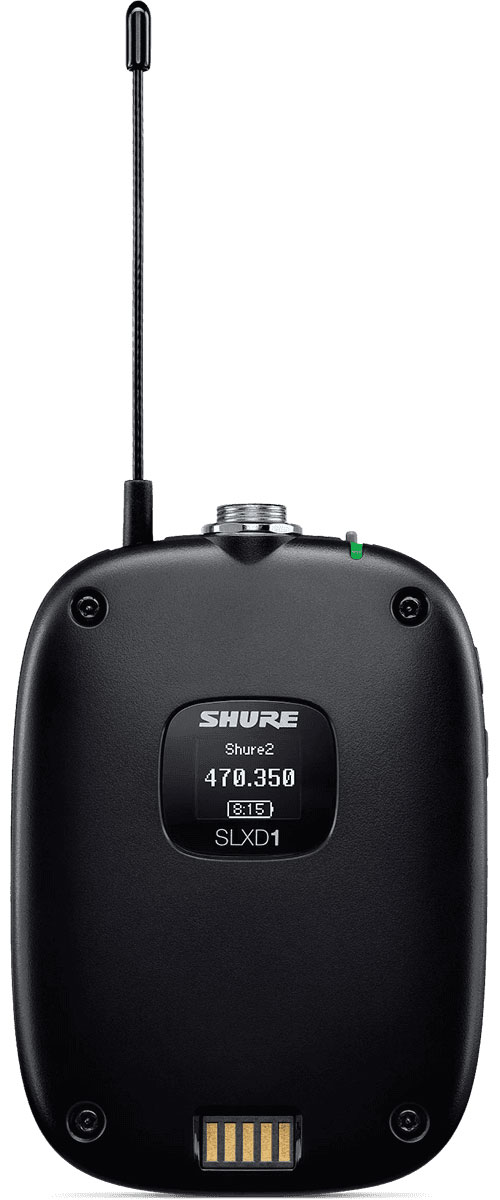

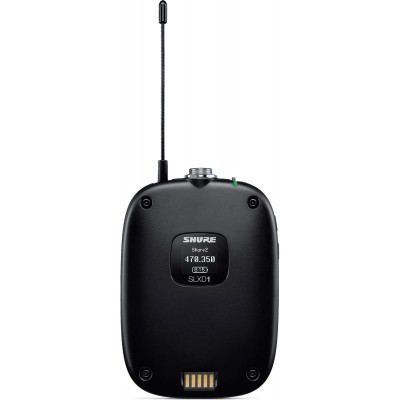

SLX-D series belt transmitter with a 4-pin male TA4M input connector. It has a fixed ¼ wave antenna. It can be powered by two LR6 batteries, or by an optional SB903 Lithium-Ion battery for an autonomy of 8 hours. Frequency band H56 (518 to 562 MHz)
Combining simplicity of configuration and use, the SLX-D series benefits from the latest technological advances from Shure in terms of digital wireless transmission.
It offers exceptional audio quality and HF performance robust and stable, guaranteeing operation for any event with complete peace of mind.
The transmitters can be powered by two AA batteries or with a Shure Ion-lithium SB903 battery, available as an option, for autonomy accurate display in hours and minutes and a reduced cost of ownership.
The SLX-D series is compatible with the entire existing range of Shure accessories and antennas.
< br>
Excellent audio quality
- 24-bit / 48 kHz for a precise and dynamic signal
- Uniform frequency response from 20 Hz to 20 kHz
- Dynamic range greater than 120 dB
Stable and robust RF transmission
- 44 MHz RF bandwidth
- 32 compatible frequencies per band
- Frequency scanner
Quality and peace of mind
- Configuration wizard for easy implementation
- Ethernet port for group scanning, configuration of different receivers and firmware update
- Up to 8 hours of battery life with optional SB903 battery
- Choice between the SBC10-903-E charger for recharging the SB903 battery and a two-bay SBC203-E charger dock accepting the SB903 battery and the SLXD1 and SLXD2 transmitters
Frequency bands available
- G59: 470 to 514 MHz
- H56: 518 to 562 MHz
- J53: 562 to 606 MHz
- K59: 606 to 650 MHz
Features
Accessories included: batteries, carrying pouch Display: OLED Power supply: 2 AA alkaline batteries, Rechargeable lithium-ion battery Autonomy: 8 hours Capsule: N/A Category: Micro HF transmitter Connection: TA4M Dimensions (mm): 98 x 68 x 25.5 mm (H x W x D) Directivity: N/A Maximum number of simultaneous systems: 32 Weight (kg): 89 g Transmission power: 10 mW Frequency response: 20 Hz 19 kHz Transmission: digital
