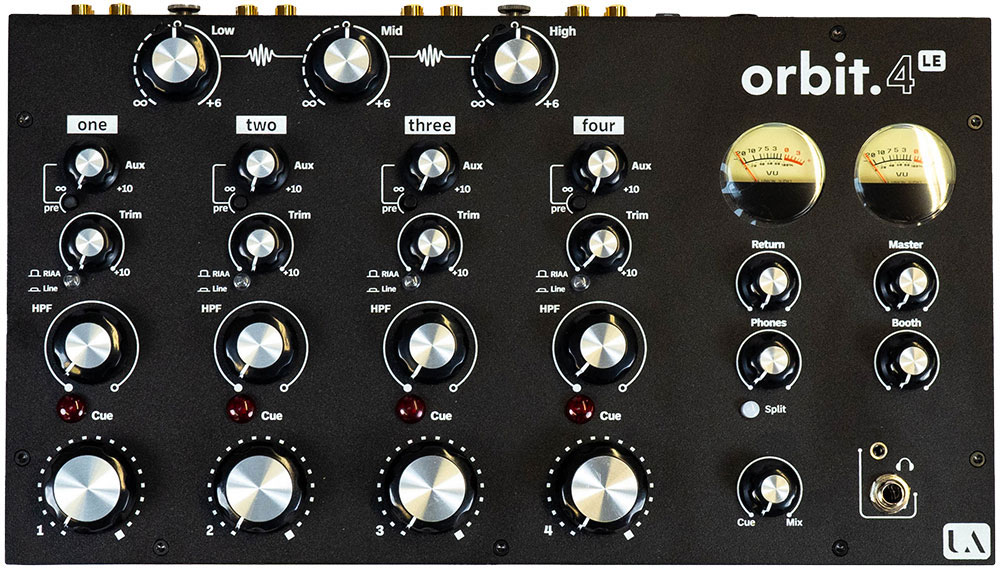

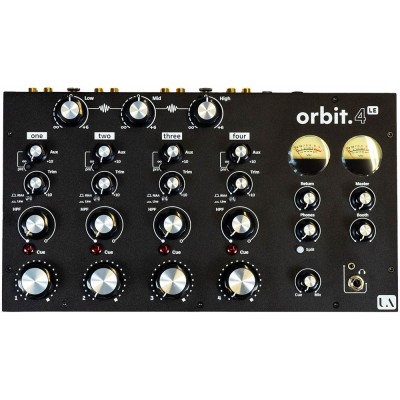

The Union Audio orbit.4 LE is a professional 4-channel DJ mixer, designed to deliver an exceptional DJ experience. It features four fully independent channels, each equipped with a high-quality phono preamp and line input. Precision Alps rotary faders, a high-pass filter with variable Q, and a pre/post-switchable FX send enable creative sound shaping and seamless transitions. The master section allows independent control over Master, Booth, and Aux levels, while two illuminated analog VU meters ensure precise signal monitoring. The powerful headphone amplifier includes split cue and cue/mix functionality, with support for both 6.3 mm and 3.5 mm headphone connectors?providing maximum flexibility for professional setups.
Features 4-channel rotary desktop mixer 4x phono preamps and 4x line inputs (RCA) 3-band isolator with full cut and up to +6 dB boost, crossover frequencies at 110 Hz and 3 kHz High-pass filter (HPF) with variable Q for precise tonal control Flexible FX activation (latching or momentary) via on/off button per channel Dedicated master insert for connecting external FX units, compressors, or EQs Precision Alps rotary faders for smooth transitions, excellent feel, and precise control Dual microphone inputs (balanced XLR) on the rear with on/off switches Independent level controls for Master Out, Booth Out, and Aux Return Two illuminated analog VU meters for accurate signal monitoring High-power headphone amplifier with split cue and cue/mix functionality Universal headphone outputs: 6.3 mm (1/4") and 3.5 mm jack Balanced XLR Master Out, 6.3 mm Booth Out, and stereo RCA Record Out Analog circuitry for warm, classic sound Made in UK
Technical Specifications - Union Audio orbit.4 LE Mixer Number of channels: 4 (each with phono and line input) Faders: Alps rotary faders EQ: 3-band isolator with crossovers at 200 Hz, 800 Hz, and 2000 Hz (cut to +6 dB boost) Filter: High-pass filter with variable Q, -3 dB at 1500 Hz (fully open) FX send with pre/post switching Master insert for external FX, compressors, or EQs Dual mic inputs with on/off switch (balanced XLR) 4x phono preamps (stereo RCA) 4x line inputs (stereo RCA) FX send (6.3 mm jack) Aux return (6.3 mm jack) 2x mic in (balanced XLR) Master out: 2x balanced XLR Booth out: 2x balanced 6.3 mm jack Record out: 2x RCA Aux return Headphone output power: 750 mW RMS at 33 Ohm Headphone connectors: 6.3 mm and 3.5 mm jack Headphone functions: Split cue, cue/mix Separate level controls for master, booth, and aux return Two illuminated analog VU meters THD+N (unweighted, 0 dBu, 20 Hz-20 kHz): 0.005% Frequency response (line-in to mix-out): ±2 dB from 20 Hz to 100 kHz RIAA accuracy: ±1 dB from 20 Hz to 20 kHz Fader attenuation: > -80 dB L/R crosstalk (at 1 kHz): < -75 dB Residual noise (mix-out): < -90 dBu (22 Hz - 22 kHz, unweighted) Noise (line-in to mix-out, unity gain): < -85 dBu Max output level (mix-out, 0.5% THD): +27 dBu Dynamic range: 117 dB External switching power supply (SMPSU) Input voltage: 90-260 VAC Output: 12 V DC, 50 W Efficiency: LEVEL VI Enclosure: Robust steel chassis Origin: Made in UK
Dimensions & Weight Mixer: 35.0 x 19.5 x 8.8 cm (W x H x D, incl. knobs) Mixer weight: 3.5 kg Shipping dimensions: 48 x 28 x 20 cm Shipping weight: 4.6 kg
