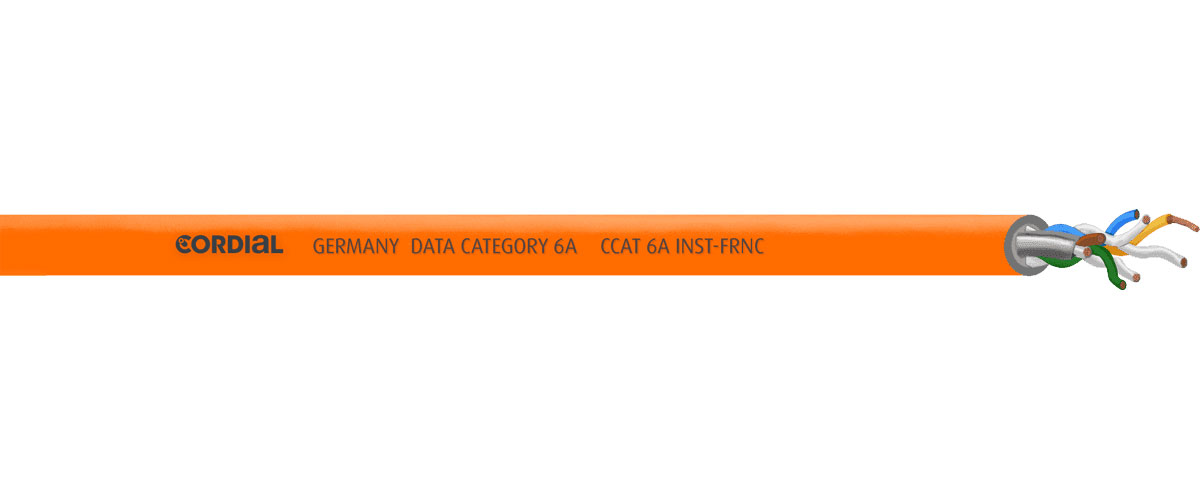

The CAT6A network cable was specially developed by Cordial based on a specification sheet specifically established from the issues encountered in the installation world. With this in mind, this cable is equipped with a solid AWG23/1 conductor and pair shielding, allowing it to offer high-quality high-speed transmission with a very low level of attenuation over long distances. It is compatible with the PoE+ standard (IEEE 802.3at), allowing compatible equipment to be powered electrically through the network. To meet the ever stricter requirements imposed in the installation and integration universe, this cable is equipped with a fire-retardant FRNC sheath (halogen-free). Its technical and electrical characteristics make it an excellent network cable for fixed installations, where technical and regulatory constraints are paramount.
The CAT6A network cable was specially developed by Cordial based on a specification sheet specifically established from the issues encountered in the installation world. With this in mind, this cable is equipped with a solid AWG23/1 conductor and pair shielding, allowing it to offer high-quality high-speed transmission with a very low level of attenuation over long distances. It is compatible with the PoE+ standard (IEEE 802.3at), allowing compatible equipment to be powered electrically through the network. To meet the ever stricter requirements imposed in the installation and integration universe, this cable is equipped with a fire-retardant FRNC sheath (halogen-free), compliant with EC 60332, IEC 60754, and IEC 61034 standards of the International Electrotechnical Commission (IEC) concerning the use of halogen-free indoor cables. Its technical and electrical characteristics make the CAT6A-INST an excellent network cable for fixed installations, where technical and regulatory constraints are paramount.
- Category: Network cable - Color: Orange - Connectors: None - Oxygen-free copper: Yes - Length: 100 m - Sheath material: FRNC (copolymer) - Number of pairs: 4 - Cable cross-section (mm²): 0.26 mm² - Shielding type: aluminum foil on pairs only (U/FTP) - Additional specs: - Cordial CCAT 6a oxygen-free cable - Conductor structure: 1 x 1.32 mm - Conductor insulation: polyethylene - Electrical capacity: 45 pF/m - Attenuation at 100 MHz (for 100 m): 17.8 dB - Characteristic impedance: 100 Ω ± 5% - Cable diameter: 7.3 mm - Cable weight: 50 g/m
