Rockboard MINI MOD DC, PATCHBAY DC SOCKET (1 X INPUT AND 2 X PARALLEL INPUTS)

14.90 €

Beschrijving

Mini Mod DC, patchbay with 1 x TRS input and 2 x TRS input that can be used in Return Send

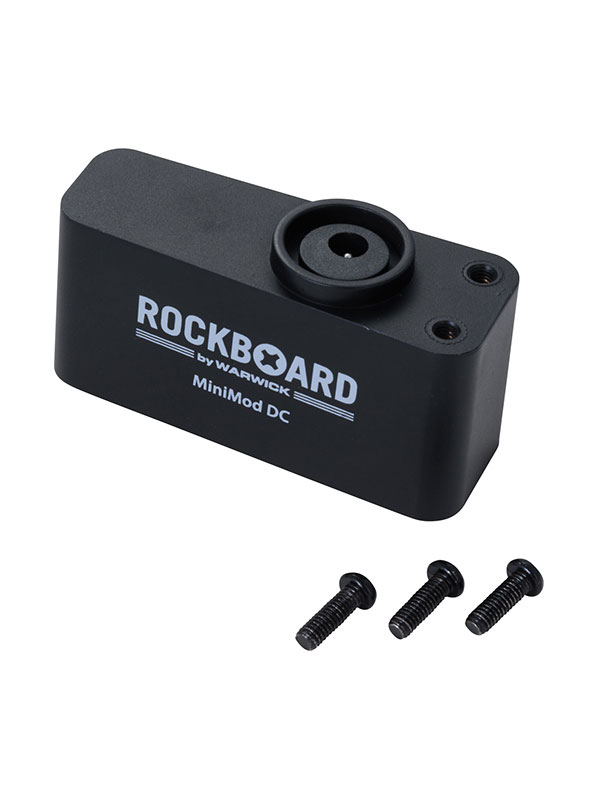

The Mini Mounting MOD DC provides convenient access to the setup?s multi-power supply without the need for complicated routing of the power supply cable under the pedalboard. It fits perfectly into the RockBoard LED Light mounting holes and is a versatile, clean mounting solution on all RockBoard series pedalboards. The central access to the power supply is provided by a DC 2.1 x 5.5 mm barrel thru jack. Since the Mini Mounting MOD DC uses through-connections between the inner and outer barrel jacks, it is also possible to supply power to external pedals, such as Wah, in the reverse direction. DC power supply cables or ''daisy chain'' distributors can be used instead of a multi-power supply to distribute power to the pedals. (Outputs A and B are connected in parallel).

Note: To avoid damage to the individual components, the total current consumption of all devices on the board should not exceed the output current of the connected multi-power supply or of the power adapter supplying the ''daisy chain'' connections. Make sure that the voltage and polarity of the external power supply match the requirements of the multi-power supply/pedals.

- Mini MOD DC
- mounting solution for RockBoard pedalboards and power supplies
- fits in the mounting hole for the RockBoard LED Light
- 1 x DC 2.1 x 5.5 mm barrel jack to 2 x DC 2.1 x 5.5 mm barrel jack
- no drill holes necessary
- dimensions: (W x D x H): 25 - 20 x 35 x 70 mm / 63/64''- 25/32'' x 1 3/8'' x 2 3/4''
- weight: 30 g / 0.07 lbs
- incl. mounting screws

Merkreferentie: RBO-B-MOD-MINI-DC
