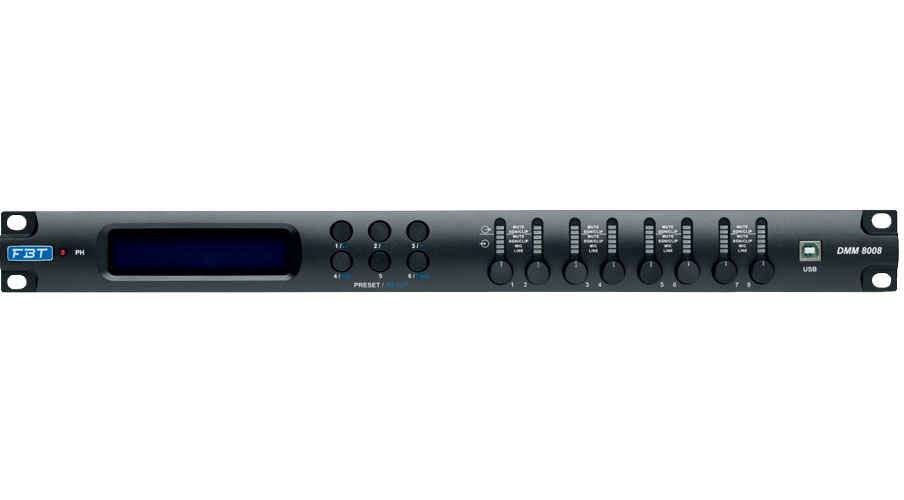

- Digital Matrix Mixer
- 24-bit converters
- 48 kHz sample rate
- 8 Mic/Line inputs
- 8 outputs with full matrix mixing
- 3-band parametric EQ
- Low-pass/High-pass filters
- 5-band parametric EQ per output channel - Crossover with slopes from 6dB/Octave up to 24dB/Octave, including Butterworth, Bessel, Linkwitz-Riley
- Gain control
- Noise gate
- Feedback suppressor (Mic input only)
- Peak limiter
- RMS compressor with selectable ratio
- Automation features:
- Configurable NOM attenuation
- Gain sharing algorithm
- Priority ducking
- Adjustable delay time up to 380 ms per output channel
- Display LCD
- 8 front buttons available for mic input gain control
- 4 input contacts for 4 additional selections with priority configuration
- 4 digital output ports for triggering external devices
- Simultaneous control of up to 32 units via PC software
- Security lock
- TCP/IP, RS 485 and USB connection for remote controls (RS485 supplied as an option)
Merkreferentie:
FBTDMM8008
