The new model 2960 brought a facelift to one of our best-selling products. Now the new SPL design represents the common origin of our channel strips Frontliner, Channel One and Track One. However, technically we did not change anything to continue with tried and tested quality.

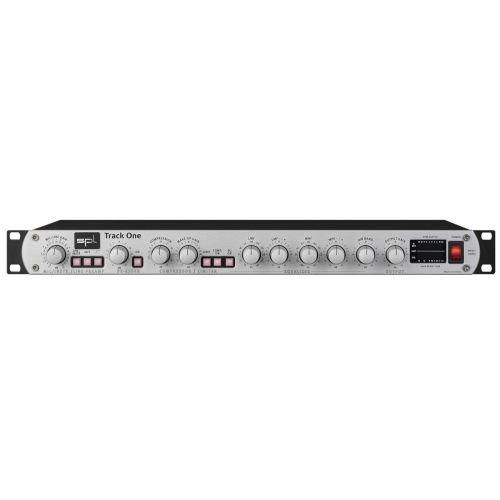

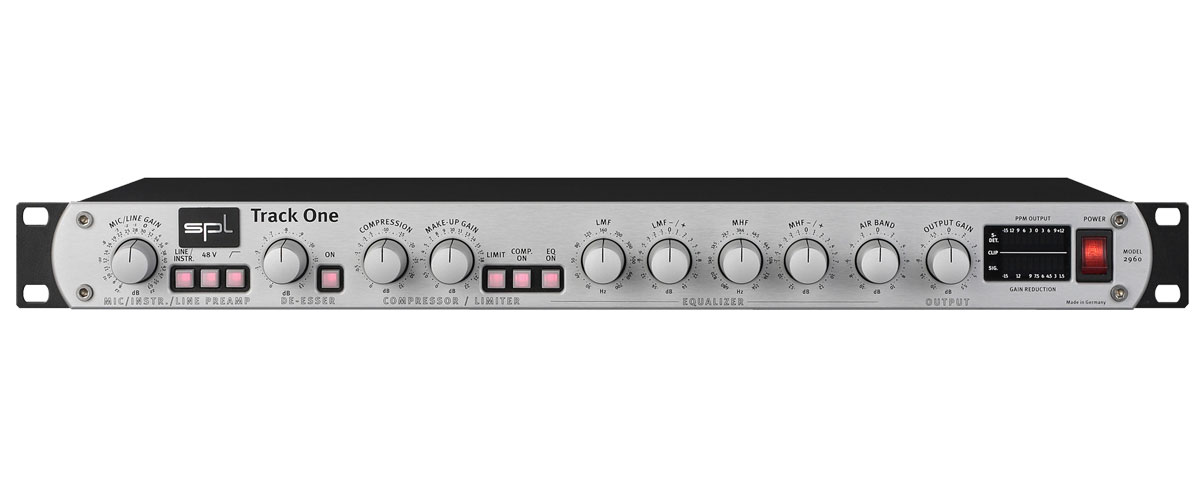

The Track One is a complete mono channel strip with a very attractive price/performance ratio. It is a perfect tool for the fast and safe recording of voices and instruments and especially popular in the German broadcasting industry.
The Track One meets highest demands in sound quality and reliability and covers an unlimited application range from studio over live to post production applications.
FEATURES
- Preamp stages optimized for all microphone types and instruments - SPL‘s De-Esser - Compressor/limiter stage - 3-band EQ stage - Output stage with metering - Balanced XLR and 1/4 inch TRS connectors - Options: A/D converter and Lundahl input transformer
SPECIFICATIONS
MICROPHONE INPUT Frequency response: 10 Hz-200 kHz (200 kHz = -3 dB) Common mode rejection: 1 kHz: -80 dB / 10 kHz: -68 dB (at -20 dBu) THD & N amplification A-weighted 20 dB -97,5dBu 40 dB -91,0dBu 65 dB -69,6 dBu Dynamic response: 115 dB
INSTRUMENT INPUT Frequency response: 10 Hz-180 kHz (180 kHz = -3 dB) THD & N amplification A-weighted 7 dB -98,4 dBu 20 dB -95,8 dBu 42 dB -77,2 dBu Input impedance Line: 12 kOhm / Instr.: 1 MOhm Max. input level Line: +28 dBu / Instr.: +12 dBu Dynamic response: 115 dB
