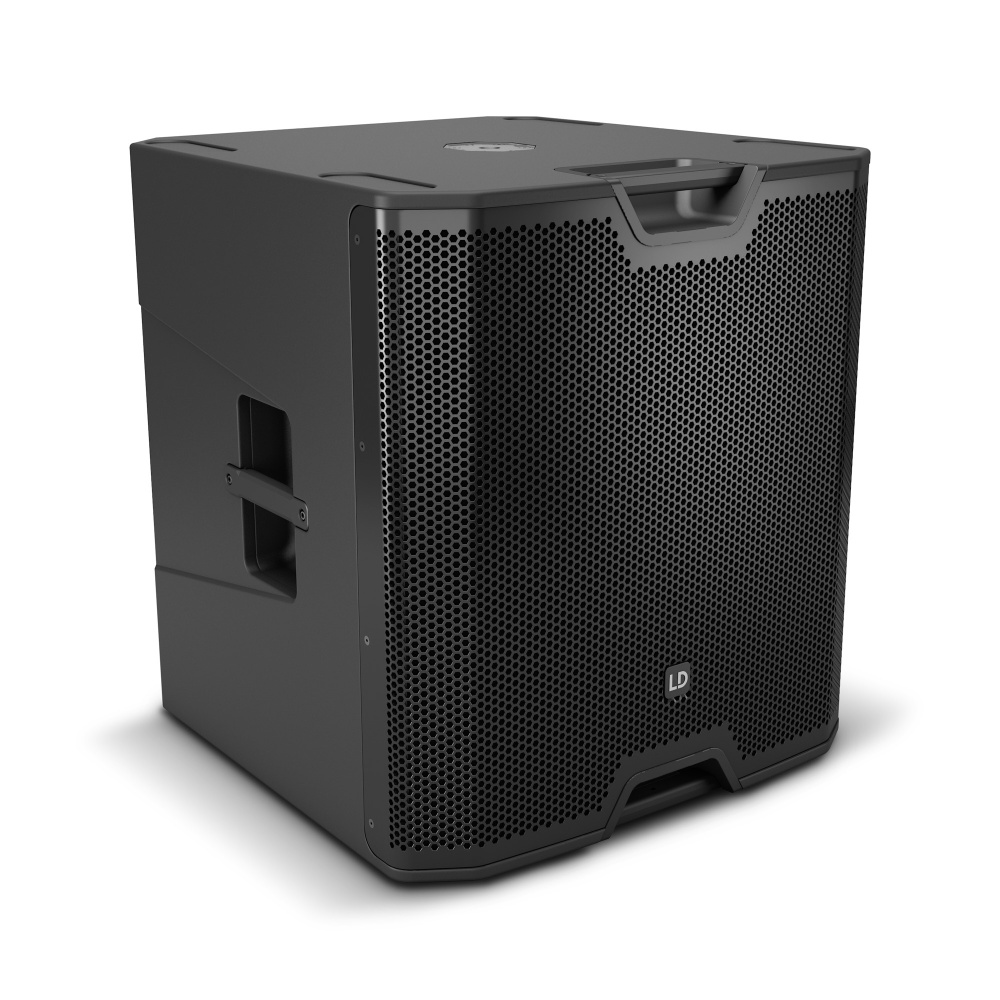

ICOA SUB 15 A active subwoofer
The groove is assured with penetrating bass. The ICOA SUB subwoofer allows them to be adjusted to the desired level to put the audience in the mood and attract them to the dance floor or to emphasize the message to be conveyed during a conference.
The ICOA SUB subwoofer performs very well at the low end of the audio spectrum while offering generous power reserves and very clear sound reproduction. It actually relieves the pressure on the main speaker, whose woofers will be less constrained by bass impulses, resulting in reduced intermodulation distortions: even at high volume, the sound of voices and instruments remains perfectly clear.
Its 400 W (RMS) class D amplifier offers a peak power of 1600 W. So it has some under the hood. You can also ideally adapt the ICOA SUB to your installation, via the presets of the integrated DSP DynX. It also offers three cutoff frequencies to choose from: 80, 100 and 120 Hz. Finally, the polarity of the signal can be changed and the Line Delay can be adjusted up to 10 m.
If requirements change over time and as the rooms become larger and larger, the installation adapts. It is in fact possible to mount several ICOA SUB subwoofers in parallel. This will give you even more power. With two ICOA SUBs you can also use the cardioid mode. Normally, the subwoofer emits in all directions. By pointing one toward the rear and activating the pre-configured cardioid mode, the bass will be delivered forward in a controlled manner, while maintaining the same punch.
These 18" laminated wood subwoofers mm are stackable and have an M20 thread on the top allowing the main speaker to be mounted with a spacer bar. For transport, casters can be fitted at the rear; pads protect the edge during assembly and disassembly operations. Finally, to ensure that the ICOA SUB subwoofer fits comfortably in the hand, four aluminum handles with rubberized surfaces are available.
DJs, singer-songwriters, rock groups or dance orchestras: the ICOA SUB is the ideal solution for amplifying live bass, but also for conferences and multimedia presentations. With clear sound and crisp bass, the result is grandiose in all circumstances!
- 15" subwoofer impressive in the low end of the audio spectrum up to 36 Hz
- Max. SPL of 131 dB and PEAK power of 1600 W thanks to a class D digital amplifier
- Optimized Bass Reflex openings
- DSP DynX with 4 presets (3 crossover frequencies, cardioid mode)
- Modifiable signal polarity and Line Delay adjustable up to 10 m
- 2 combined inputs (jack/XLR), 2 XLR outputs
- Solid 18 mm plywood casing...
Technical Characteristics
- Product type: PA subwoofer
- Type: Active
- Diameter woofer/midrange: 15 "
- Boomer diameter: 381 mm
- Boomer magnet: Ferrite
< li class="left-item">Boomer brand: Customized- Boomer coil: 3 "
- Woofer coil (mm): 76.5 mm
- Amplifier: Class D
- Power (effective): 400 W
- Power (peak): 1600 W
- Response frequency (-10dB): 36Hz Dependent on preset
- Maximum SPL level (peak): 131 dB
- Protection circuits: limiter activation, Excursion Limiter, RMS Limit, Overload, Overheat, Overvoltage
- Settings: encoder/key
- Indicators: LC screen
- Line inputs: 2
- Line input connectors: XLR/6.3mm jack combo jacks (balanced)
- Line outputs: 2
- Line output connectors: XLR
- Mains voltage: 100 - 240 V
- Power consumption (max): 675 W
- Temperature d use: 0 - 40 °C
- Relative humidity rate: < 60%, non-condensing
- Cabinet material: 18 mm Multiplex
- Cabinet surface: Structured lacquer paint
- Cabinet finish: Bass Reflex< /li>
- Width: 510 mm
- Height (mm): 598 mm
- Depth: 552 mm
- Weight: 32.5 kg
