Allen & Heath ZED-24

Description

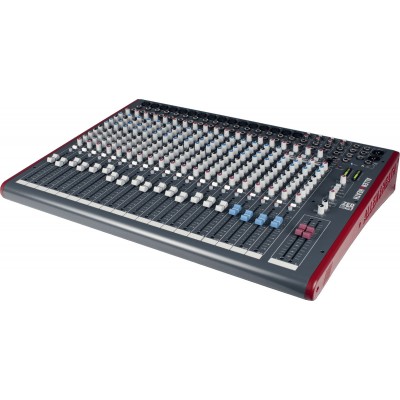

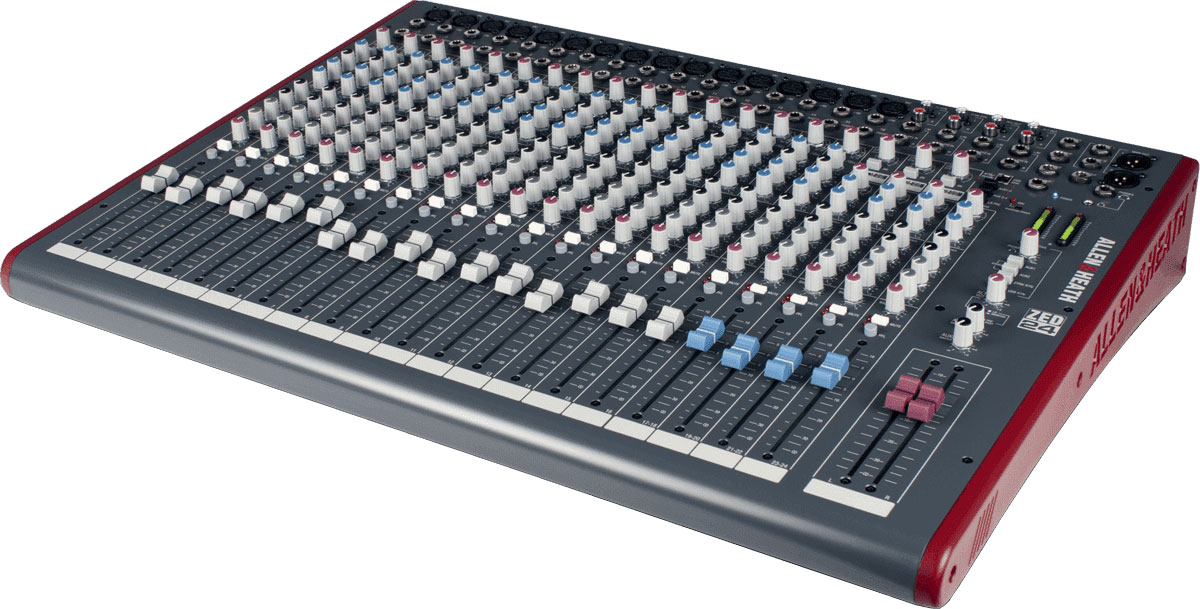

ZED-24 mixer

Alter ego of the ZED-22FX which trades its effects unit for an additional stereo channel, the ZED-24 is an analog mixing console with 16 mono channels , 4 stereo channels and four auxiliary sends. Its USB connection also allows it to record or play a stereo signal with a computer.

A flamboyant heritage!

Thanks to almost half a year of experience century in the manufacture of consoles which have made the heyday of countless studios, Allen & Heath knows a thing or two about warm and rounded, dynamic and precise sounds! A major specialist in analog sound, the manufacturer has therefore been offering for several years a series which takes up the design quality of large consoles with highly professional characteristics while remaining very inexpensive. With its 24 channels, its DuoPre microphone preamps with a dynamic amplitude of 69 dB and its numerous signal routing options, the ZED-24 is a true standard of this demand for perfection.

A tailor-made mixer for stage and studio.
The ZED-24 has all the ingredients to become the ideal interface for all your productions, both live and in the recording studio. It has 10 channels with pre-amplified XLR microphone inputs, which also benefit from a line input in 6.35 mm TRS jack format, just like the eight inputs of the four stereo channels which complete the configuration. Additionally, the mono inputs feature a three-band EQ, one of which is semi-parametric while the stereo inputs include a gain control and a two-band EQ? Luxury!

Very practical auxiliaries!
The ZED-24 offers four auxiliary sends, two of which take the signal before the faders, and two after, one also allowing you to recover the effects for obtain multiple monitoring configurations. In addition, each mono channel has an insert in 6.35 mm jack format, to facilitate the use of external processors. Finally, it is possible to send different mixes from two of the auxiliary outputs, directly to the USB port, to make recordings completely independent of the master outputs: practical!

Between analog and digital.< br>Mac and Windows compatible, the ZED-24 has three different configurations for recording, playback or external effects. Its USB port represents an excellent solution for recording on a computer via any acquisition software, and therefore gives the mixer great versatility, whatever the configuration?

Characteristics

  • Display: LED
  • Phantom power: Yes
  • Category: analog table
  • Fader travel: 100 mm
  • < li>Dimensions (mm): 645 x 465 x 95
  • EQ: 3-band with mid semi-param and 3-band depending on channel
  • Recording: USB
  • < li>Inputs (other): USB, inserts: jack on each mono input, 2 x phono
  • Line inputs: 16 x jack, 4 x stereo
  • Mic inputs: 16 x XLR
  • Filters: Low cut
  • Insert: Yes
  • PFL/AFL mode: Yes
  • Number of channels: 24
  • Number of faders: 22
  • Number of auxiliary sends: 4
  • Number of microphone preamps: 16
  • Weight (kg): 11.50 kg
  • Outputs (others): stereo headphone jack, stereo minijack headphone, 4 x auxiliary jack, Rca recording, alternative (Rca), 2 Rca tracks
  • Main outputs: mono jack, 2 x XLR
  • Additional specs:
  • Insert jack
  • Auxiliary send: 4 (1 & 2 pre, 3 & 4 post-fader)
  • Pan adjustment
  • Switches: Mute and PFL
  • 2 stereo effects returns
  • Mono summing switch
  • 12 LED bargraph < /li>
  • USB port for 16-bit 32
  • 48 kHz stereo recording or playback.
  • Brand reference number: SAE ZED-24
