Refurbished Product Details: The original packaging is slightly torn.
Warranty Period: 3 years
Only 1 product available
Key Features
- Two generative sequencers create interwoven melodies that evolve over time. Its a source of inspiration that reveals patterns you can capture, recall, and develop.
- A new approach to the signature sound of classic Moog synthesizers with a West Coast-style voltage-controlled wavefolder. Two oscillators drive duophonic melodic counterpoints, metallic FM tones, and analog synthetic percussion.
- Voltage-controlled resonant filters that transition from low-pass to band-pass response allow you to experiment with complex tonal shapes.
- A parallel voice processing path with voltage-controlled mixing lets you modify sounds over time.
- A full patch bay for integration with a wide variety of other modules in your rack and studio.

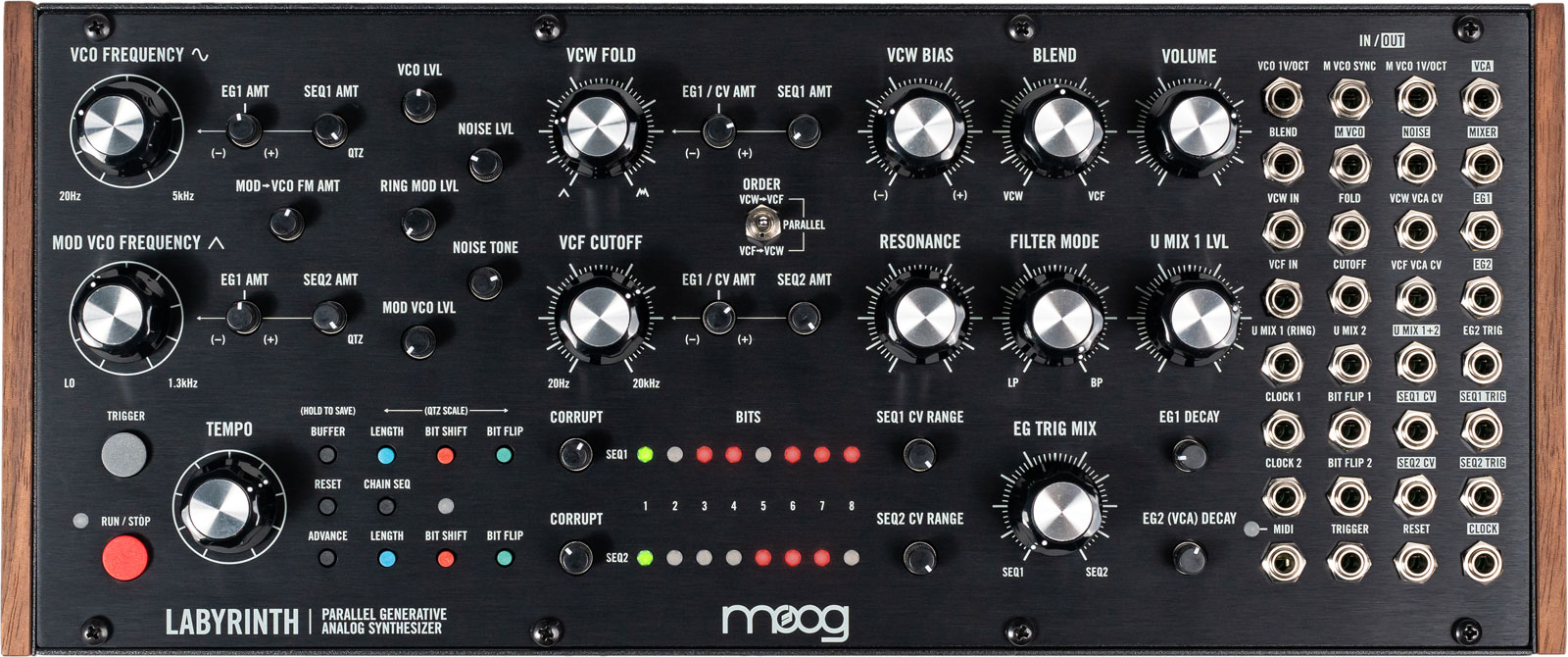

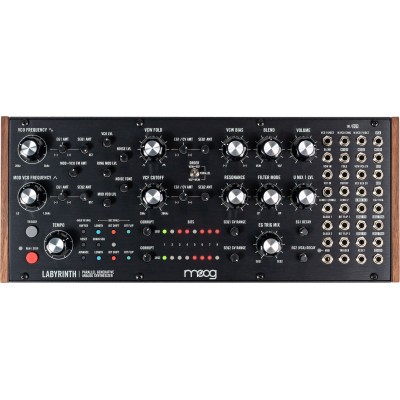

MOOG Labyrinth
Labyrinth, a semi-modular instrument and idea machine, discovers motifs, layers, and textures both familiar and new. Two generative sequencers bring to life sounds that flourish over time, allowing you to control their evolution and scale, then play them against each other to create striking polymetric melodies. With parallel analog signal paths, this unique instrument shines when adding color to the static backdrop of a drum pattern or bassline. Capable of operating standalone or adding depth to your existing rack, it feels equally at home on stage or at the heart of a humble bedroom studio. Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caves.
At the beating heart of Labyrinth is a robust dual sequencer, using random operations to build two unique eight-step paths that twist and bend around each other, forming a hypnotic sonic journey. With a full patch bay, Labyrinth can be synced via analog or MIDI clock while processing, routing, and being influenced by other rigs.
Tune your instruments together and let Labyrinth improvise in the same key while you play Matriarch. Pair Labyrinth and Spectravox to create animated spectral movements. Combine Labyrinth and Mavis in a 104HP rack for extended modularity. These are just a few of the many playful configurations where Labyrinth finds its place. Whatever path you choose, let Labyrinth guide you.
Details
ANALOG SYNTHESIS ENGINESOURCES: VCO, MOD VCO, RING MOD, NOISE Generator
SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x
Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers
MODULATORS: 2x Decay-only envelope generators
DUAL GENERATIVE SEQUENCERDigital generative sequencers 2x 8-step
PATCH BAYJACKS: 32 x 3.5mm
INPUTS: 20 Input Jacks
OUTPUTS: 12 Output Jacks
REAR PANELAUDIO: 1?4 TRS Headphone or 1?4 TS Instrument
POWER: Power Supply connection
SECURITY: Kensington Lock slot
POWER SUPPLY (INCLUDED)STYLE: Wall plug, positive center barrel
INPUT: 100 240VAC; 50 Hz 60 Hz
OUTPUT: +12VDC; 1200mA
POWER CONSUMPTIONTYPICAL: 4.0 W
SPECSEURORACKCURRENT DRAW: 290 mA (maximum) from +12VDC (10-pin header)
MOUNTING DIMS: 60HP (18mm Module Depth)
IN THE BOX- Semi-modular parallel analog synthesizer Labyrinth
- Power supply
- Patch overlay
- Patch cables (5x 30cm)
- Registration card
- Quick start guide
- Cheat Codes
- Safety and warranty manual
WEIGHT & DIMENSIONSWeight (kg) 1.5 kg
Dimensions (cm) 32.61 W 14.33 D 10.67 H
