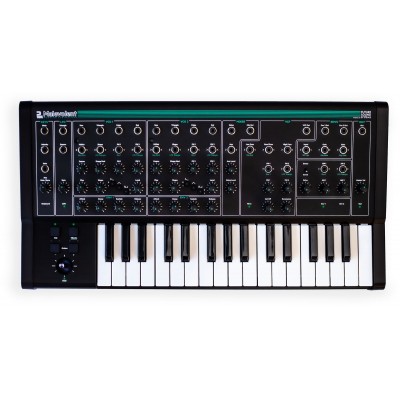

PWM MALEVOLENT

Description

- Modular Pure Analogue Synthesiser
  • ​Pure Analogue signal path designed by Future Sound Systems
    • Pure VCOs
    • 19 Outputs and 19 Inputs for 3.5mm mono jack cable patching
    • Normalised signal path for immediate sound Malevolence
    • Additional rear panel line out
    • Additional headphone out

  • 2 Voltage Controlled Oscillators
    • Saw / Triangle / Pulse outputs plus Mix for each oscillator
    • 1V/Oct pitch control input
    • Shape control / pulse width modulation input
    • 2x Frequency Modulation inputs
    • Coarse / Fine tune control
    • Shape mod amount control
    • FM1 and 2 mod amount controls
    • Shape control
    • Selectable waveforms for the mix output
    • Individual osc level control

  • LFO (Low Frequency Oscillator)
    • Triangle / Square wave outputs
    • Rate control

  • 2x Envelopes
    • Individual ADSR controls for each envelope
    • Individual gate inputs
    • Individual envelope outputs

  • * Multi-mode 2 pole VCF (Voltage Controlled Filter)
    • Low pass / Band pass / High Pass individual inputs
    • 2x Frequency Modulation inputs with amount controls
    • Filter cutoff
    • Filter resonance

  • Mixer
    • Noise w/level control
    • Aux input w/level control

  • VCA (Voltage Controlled Amplifier) with overdrive control
  • Compatible with Eurorack standard 1V/Oct gear
  • Monophonic and patchable allowing individual pitch control of each VCO and gate control of each envelope
  • USB bus-powered
  • MIDI In / Out
  • Headphone out
  • Line out
  • Analogue clock in & out
  • USB-MIDI to 1V/Oct CV & gate conversion
    • All pitch and gate control is fully analogue
    • Analogue clock In / Out

  • Multi-function Joystick control
    • Left / right for pitch bend
    • Performable portamento
    • Performable vibrato
      • This is in addition to the analogue LFO
    • Latching hold mode

  • Arpeggiator
    • 6 arpeggiator types
      • Up, Down, Up/Down 1, Up/Down 2, Played & Random
      • Auto clock sync
      • Detects analogue / MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
      • Selectable sync rates when clock detected
    • Rate / sync control
    • Latch
    • 6 Octave range
    • Analogue / MIDI / USB-MIDI Clock output when arpeggiator is running

  • Keyboard Control
    • 32 Velocity-sensitive mini-keys
    • Octave shift +/- 4 octaves
    • Pitch output
    • Velocity output
    • Gate output
    • Local Off mode for DAW use

  • ​Includes:
    • 5 Patch cables
    • Power Supply (9V 600mA)
    • USB C lead
    • Getting Started Guide

  • ​Weights and Dimensions:
    • Product (unboxed):
    • 490 x 250 x 80 mm
    • 2.61 kg
Brand reference number: MALEVOLENT
