Description

- Type: MC (Moving Coil) - Diamond: Elliptical - Cantilever: Aluminum - Output voltage at 1 kHz 5 cm/sec - 0.5 mV - Channel balance: < 1.5 dB - Channel separation at 1 kHz: > 21 dB - Channel separation at 15 kHz: > 14 dB - Frequency response 20-20,000 Hz: +/-2.5 dB - Tracking ability (315 Hz with recommended tracking force): 65 µm - Compliance, dynamic, lateral: 15 µm/mN - Stylus tip radius: r/R 8/18 µm - Tracking force range: 2.1-2.5 g (21-25 mN) - Recommended tracking force: 2.3 g (23 mN) - Tracking angle: 20º - Internal impedance: 7 Ohm - Recommended load impedance: >20 Ohm - Cartridge body material: ABS/Aluminum - Coil wire material: Copper - Cartridge color: Red - Cartridge weight: 9 g

Brand reference number: 9030_MC_QUI_RED

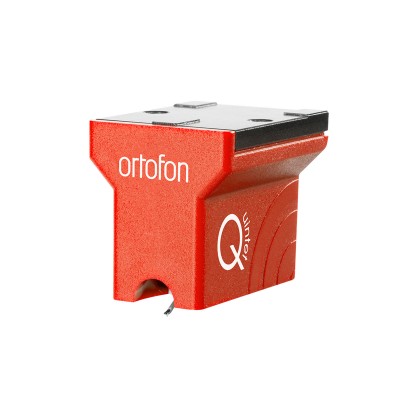

Ortofon Hifi MC QUINTET RED

Ortofon Hifi MC QUINTET RED
