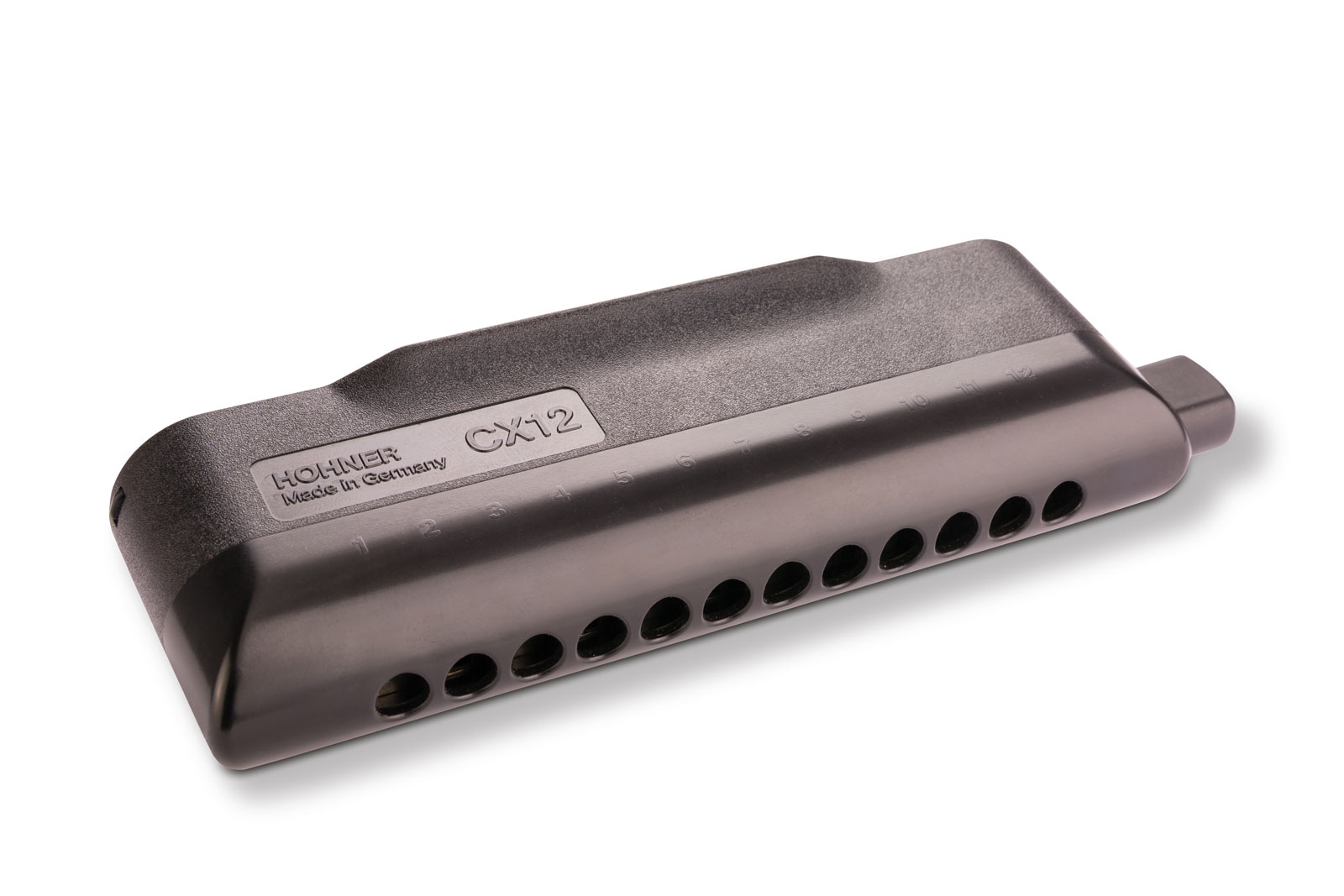

CX-12For the discerning player who enjoys the details of fine instrumentation, this sporty chromatic can be easily disassembled for fine tuning and customization. A unique, aerodynamic design incorporates both the mouthpiece and cover plates into one unit, enabling a more thorough and uninterrupted resonance and a quick response that up until now was only dreamed of in the chromatic harmonica world. Black housing. Available in nine of the most popular keys as well as a low octave C major.
Features- Award winning design
- Injection moulded plastic comb
- Ergonomic plastic casing / mouthpiece
- Exceptionally airtight & service-friendly
- 48 Classic chromonica reeds
- 1.05 mm brass reed plates
- Replacement reed plates available
- Round channel openings
- Hard shell case
Specifications- Order no. : M754500
- Item name : CX-12 Black
- type : chromatic
- Key : C
- tuning : chromatic
- Number of holes : 12
- Reeds : 48 brass
- Cover surface : ABS
- Reed plates : 1,05 mm brass
- Reed plate surface : brass
- Mouthpiece surface : ABS
- Slide construction : zigzag
- Comb : ABS, black
- Length : 16,8 cm
Tuning charSlide Out| Blow | C4 | E4 | G4 | C5 | C5 | E5 | G5 | C6 | C6 | E6 | G6 | C7 |
| Hole | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Draw | D4 | F4 | A4 | B(H)4 | D5 | F5 | A5 | B(H)5 | D6 | F6 | A6 | B(H)6 |
Slide In| Blow | Db4 | F4 | Ab4 | Db5 | Db5 | F5 | Ab5 | Db6 | Db6 | F6 | Ab6 | Db7 |
| Hole | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Draw | Eb4 | F#4 | Bb4 | C5 | Eb5 | F#5 | Bb5 | C6 | Eb6 | F#6 | Bb6 | D7 |
