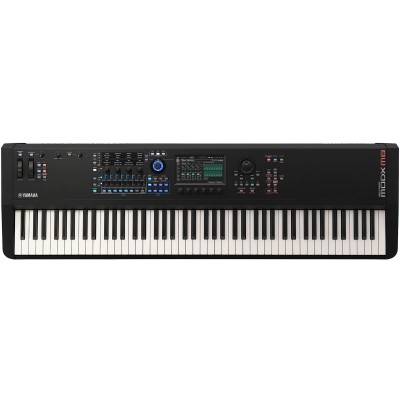

Essential Information About the Yamaha MODX M8 Synthesizer
- Triple engine AWM2/FM-X/AN-X under the unified control of the "Motion Control Synthesis Engine" to combine acoustic realism, FM clarity, and analog warmth.
- 88-key GHS keyboard and dedicated control surface (8 faders, 6 Display Knobs, Scene Switches, Super Knob) designed for live performance.
- Up to 268 voices of total polyphony, 16-track sequencer, and 10,922 arpeggios for immediate creation.
- Seamless studio integration: multichannel USB audio, MIDI 2.0, Cubase AI bundle, and " ESP " plugin.
At the Heart of the MODX M Range: Stage Power, 88-Key Mobility
Designed for demanding keyboardists, the MODX M8 carries the DNA of Yamaha's stage workstations by adding a virtual-analog AN-X engine alongside the AWM2 and FM-X engines. Its reinforced chassis and GHS keybed make it a reliable companion for tours as well as mobile studios, with ergonomics crafted to seamlessly switch between sound worlds.
For Whom and Which Styles?
Ideal for intermediate to expert musicians, the MODX M8 covers a wide spectrum: electro, pop, funk, soul, ambient, synthwave, techno, or film music. On stage, its front panel controllers provide instant expressive transitions; in the studio, its connectivity and sequencing facilitate editing, production, and sound experimentation.
Features and Innovations
The subtractive synthesis of the AN-X, the advanced FM of the FM-X (8 operators, 88 algorithms), and the AWM2 sample playback intertwine thanks to "Motion Control" for organic morphings driven by the Super Knob. With 10.7 GB of internal waveforms, 1.9 GB of user samples, and a total polyphony of 268 voices, the MODX M8 stacks pads, leads, and pianos without compromise. The 16-track sequencer, 10,922 arpeggios (up to 8 parts simultaneously), and studio-grade effects (inserts, variations, reverbs, equalizers) stimulate composition. In production, the multichannel USB and MIDI 2.0 compatibility integrate with your DAW, while Cubase AI and the ESP plugin ensure a frictionless hardware/software workflow.
Technical Specifications
Keyboard & Form Factor
- Keys: 88 GHS (Graded Hammer Standard) keys
- Velocity Sensitive: Yes
- Split / Layer: Splittable and combinable keyboard
- Dimensions: 1310 x 391 x 152 mm
- Weight: 13.6 kg
- Color: Black
Sound Engines & Polyphony
- Architecture: AWM2 + FM-X + AN-X, driven by the Motion Control Synthesis Engine
- AWM2: 128 voices, 10.7 GB internal waveforms + 1.9 GB user samples
- FM-X: 128 voices, 8 operators, 88 advanced FM algorithms
- AN-X: 12 voices, 3 oscillators, 1 noise generator
- Maximum total polyphony: 268 voices
Effects, Filters & Modulation
- Filters: 13 types available
- Effects: 91 insert effects (Groups A & B), 91 variations, 13 reverbs
- Equalizers: 5-band master EQ, 2 to 3-band part EQs
- Real-time modulation: Assignable controls, Super Knob, dynamic curves
Rhythmic Functions & Sequencing
- Sequencer: 16 tracks, 128 patterns & 128 songs
- Arpeggiator: Up to 8 parts simultaneously, 10,922 built-in arpeggios + 256 customizable
Connectivity & Interfaces
- Audio outputs: 2 x 6.35 mm TRS jacks (L/Mono & R)
- Audio inputs A/D: 2 x 6.35 mm TRS jacks (L/Mono & R)
- Headphone output: 6.35 mm TRS jack
- MIDI I/O: 2 x 5-pin DIN ports
- Pedal inputs: 4 x 6.35 mm TRS jacks (Volume, Expression, Sustain, Footswitch)
- USB: USB-A (device) / USB-B (host), multichannel interface
Power Supply & Accessories
- Power supply: Included AC adapter
- Included accessories: Quick start guide, cable, Cubase AI & ESP activation codes
- Backup type: USB to Host, USB to Device
