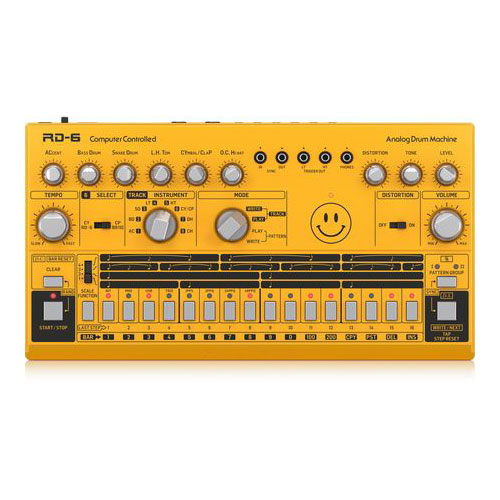

Behringer RD-6-AM

Description

Essential Information About the Behringer RD-6-AM Drum Machine

  • 8 analog voices with TR-606 character, featuring global accent and dedicated mixing per instrument.
  • 16-step sequencer that is intuitive, with 32 real-time switchable patterns and chaining up to 256 measures.
  • Built-in analog distortion (Tone/Amount controls) to add grit and energy.
  • Modern connectivity with USB/MIDI, individual outputs, and internal/external sync options.

A Modern Tribute to a Six-Zero-Six Icon

The RD-6-AM draws inspiration from the legendary TR-606 while propelling it into the current era. It features the dry punch of the kick drums, sparkling hi-hats, and the "DR-110 style" clap, all housed in a compact chassis with an "AM" finish. Positioned halfway between a reissue and a reinterpretation, it is part of Behringer's "Rhythm Designer" range as the simple, direct, and incredibly effective analog option.

Who Is It For and What Are Its Uses?

Perfect for electro, techno, acid, synthwave, indie producers and sound designers seeking punchy patterns. Its immediate usability suits beginners, while its individual outputs, extended sync, and long chaining appeal to advanced users in both studio and live settings. It is an ideal drum machine for DAW-less setups as well as for control from a DAW.

Features and Innovations

Its 100% analog engine delivers 8 iconic drum sounds. The 16-step sequencer allows step editing and real-time switching between 32 patterns; chaining them creates full tracks up to 256 measures. The distortion section adds bite, with a simple activation switch and tone and amount controls.

On the control side, 11 knobs and 26 switches provide instant access to essential parameters, while the 16 backlit steps guide programming. Connectivity includes USB/MIDI (In/Out/Thru), 6 individual outputs for external processing, trigger outputs, and synchronization options via USB, MIDI, Clock, Internal. This allows the RD-6-AM to integrate into any hardware or software ecosystem.

Technical Specifications

Voices

  • Number of sounds: 8
  • Type: Analog
  • Number of simultaneous voices: 8

Voice Controls

  • Accent: Level
  • Kick drum: Level
  • Snare drum: Level
  • Low tom, high tom: Level
  • Cymbal, clap: Level
  • Open hat, closed hat: Level

Connectivity

  • Power input: DC input connector
  • Power switch: push-button on/off
  • USB (MIDI): USB 2.0, type B
  • MIDI In, Out/Thru: 2 x 5-pin DIN
  • Start/Stop: 1 x 6.35 mm TS
  • Mix output: 1 x 6.35 mm TS, unbalanced, 1 kOhm impedance
  • Voice outputs: 6 x 3.5 mm TS, unbalanced, 100 Ohms impedance

Sync Inputs/Outputs

  • 2 x 3.5 mm TRS (tip = clock, ring = start message), threshold > 2.5 V
  • Trigger outputs: LT and HT, 2 x +15 V, 1PPS/24PPQ/48PPQ (50% pulse width), 2PPQ (narrow pulse width)
  • Headphones: 1 x 3.5 mm TRS stereo, 15 Ohms impedance

USB

  • USB 2.0 class compliant, type B
  • Supported operating systems: Windows 7 or higher, macOS 10.6.8 or higher

Models / Storage and Power

  • Capacity: 2 x 16 patterns
  • Steps: 16 steps
  • Power supply: external adapter 9 V DC, 670 mA
  • Power consumption: max 2 W
  • Indicator: power LED
  • Operating temperature: 5degC to 40degC (41degF to 104degF)

Physical

  • Dimensions (H x W x D): 56 x 305 x 165 mm (2.2 x 12 x 6.5")
  • Weight: 0.9 kg (2.0 lbs)
  • Shipping weight: 1.6 kg (3.5 lbs)
Brand reference number: 0704-AAG86-EU1
