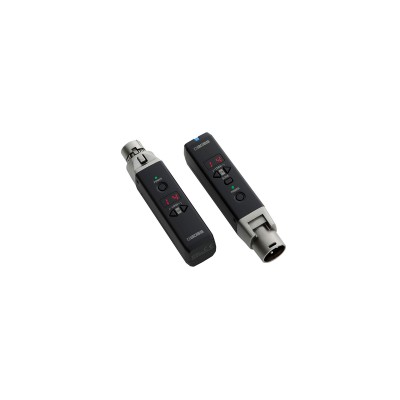

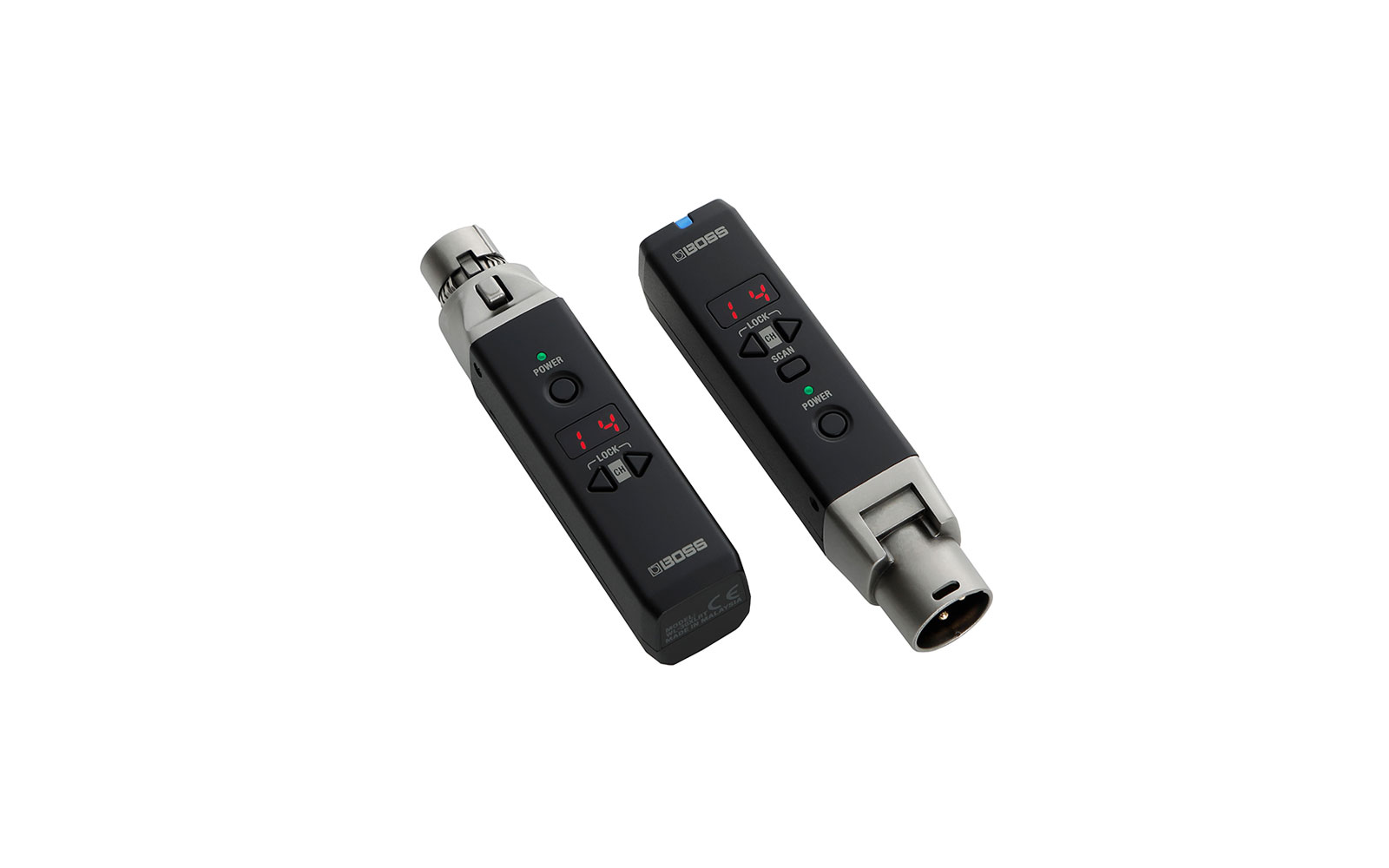

Boss WL-30XLR Wireless System
A Plug & Play Wireless Mic Experience
The WL-30XLR delivers the freedom of leading BOSS technology without wire to your favorite XLR dynamic mic. Installation is quick and easy, eliminating frequent connection hassles with other systems. Performance is solid thanks to 14 channel scanning and long range. Simple AA alkaline batteries provide long battery life as well as ease of replacement during service, if necessary. Thanks to the WL-30XLR, singers, presenters, Beatboxers, DJs, MCs and many others can enjoy premium wireless sound for their microphone.
- A Plug & Play wireless system for standard XLR dynamic mic
- Premium audio performance thanks to super-fast BOSS wireless technology
- Easy installation with a quick two-step visual process
- Up to 11 hours of battery life on standard AA alkaline batteries
- Transmission range: 70 meters (unobstructed)*
- Strong wireless performance with 14 channel scanning< /li>
- LED battery charge indicator
- Lightweight and compact transmitter for comfortable holding of the microphone
- The receiver connects to an XLR microphone input on a mixer, amplifier, audio interface, etc.
- Channel lock function
* Transmission range may vary depending on location characteristics.
Opt for the wireless freedom
Anyone who uses a microphone to communicate with an audience knows that nothing is more convenient than being free of a wired connection. No limits to your movements, no cable can get tangled in your feet. And when using the microphone on a stand, there is no need to use a second cable to send the sound to a mixer or amp. Once you have tasted the wireless experience with the WL-30XLR, you will never again be able to use a cable to plug in your microphone.
One, two, done
The WL-30XLR makes wireless installation easy with an automatic, reliable, smooth and convenient scanning process. After connecting the receiver to the XLR mic input of your mixer or other hardware, and the transmitter to your dynamic mic, you're ready in just two quick steps. Press a button on the receiver to automatically scan 14 channels and find the best one based on your environment, then confirm that channel on the transmitter. It's done
Premium performance thanks to BOSS wireless innovation
The WL-30XLR benefits from the same innovative BOSS wireless technology that powers the WL range of wireless products for guitar, bass and other instruments, as well as the Waza-Air and Katana-Air wireless amplification systems. It performs ultra-fast sound processing to achieve premium quality with ultra-low latency, as well as a comfortable range of 70 meters without obstacles
No charging required
The WL-30XLR transmitter and receiver operate using a simple AA alkaline battery, which will not require any charging time. You have a battery life of approximately 11 hours, guaranteeing operation during several concerts or rehearsals. And when the battery runs low, simply replace it in a flash and get back into action.
Features:
Receiver
- Wireless format: BOSS proprietary digital audio format
- Wireless carrier frequency: 2.4 GHz
- Compatible channels: 14 (May vary depending on local conditions)< /li>
- Transmission range: 230 feet line-of-sight (May vary depending on local conditions)
- Latency: 2.3 ms
- Dynamic range: 110 dB or more
- Frequency response: 20 Hz--20 kHz
- Nominal output level: -40 dBu
- Maximum output level without clip (1 kHz, typ.): 0 dBu
- Output impedance: 600 ohms
- Recommended load impedance: 10 k ohms or more
- Controls:
- POWER button
- CH button
- SCAN button
- Display: 7 segments, 2 characters (LED)
- Indicators:
- Connectors: Output plug: XLR type
- Power supply: Alkaline battery (AA, LR6) x 1
- Current consumption: 130 mAE
- Expected autonomy in continuous use: Alkaline battery (AA, LR6): Approximately 11 hours
* These figures vary depending on actual conditions of use. - Accessories:
- User manual
- Leaflet USING THE DEVICE SAFELY
- Transmitter
- Alkaline battery (AA, LR6) x 1
- Dimensions and weight:
- Width : 23 mm
- Depth: 27 mm
- Height: 99 mm
- Weight (with battery): 90 g
Transmitter
- Nominal input level: -40 dBu (4 k ohms)
- Maximum output level (1 kHz, typ .): 0 dBu
- Controls:
- Display: 7 segments , 2 characters (LED)
- Indicator: POWER
- Connectors: Input plug: XLR type
- Power supply: Alkaline battery (AA, LR6) x 1
- Current consumption: 120 mAE
- Expected autonomy in continuous use: Alkaline battery (AA, LR6): Approximately 14 hours
* These figures may vary depending on actual conditions of use. - Dimensions and weight:
- Width: 23 mm
- Depth: 27 mm
- Height: 99 mm
- Weight: 90 g
