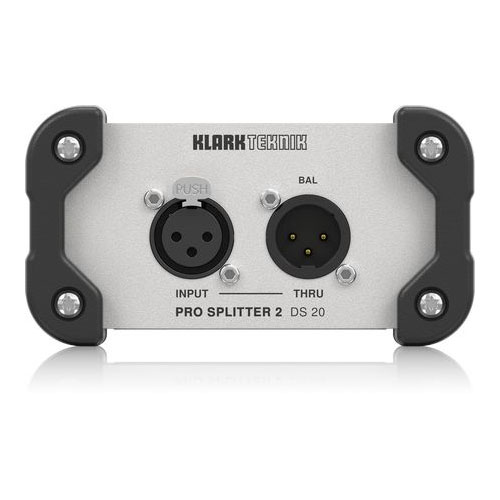

Passive signal separator 1 input/2 outputs with Midas transformer and Extended dynamic range Karlk Teknik
Based on Klark Teknik's heritage in terms of the highest quality signal processing devices, the DS 20 Pro Splitter 2 offers the same high room for maneuver, the same dynamic and the same sound clarity as you expect . The DS 20 is ideal for transporting symmetrical XLR signals to several discreet destinations, including facade and return consoles, active return speakers, diffusion mixers, etc. Passive device, the DS 20 does not require any form of external power to fulfill its mission. Equipped with a personalized Midas transformer, the DS 20 is the perfect solution for a wide range of professional audio and multimedia applications.
Midas - The legend of sound quality Since its creation in the 1970s, Midas has had a long history of innovation and leadership in the world of audio mixing consoles. Used by the most famous tours and installations from around the world, legendary Midas consoles such as XL4 and Heritage H3000 quickly became industry standards.
Midas has acquired an impeccable reputation thanks to its without compromise approach to audio quality and manufacturing, and in particular thanks to its award -winning products which are considered by the sector experts as the best sound conceptions of the industry. By relying on this heritage, the XL8 and PRO series of live mixing systems perpetuate this great tradition of award -winning audio quality.
Klark Teknik is proud to incorporate the transformers designed by Midas for high -quality audio reproduction in live and studio environments. To find out more about the incredible inheritance of Midas, visit their website.
High Headroom Design A personalized instrumental quality entry circuit has been designed for DS 20 using advanced analog design techniques to create an ideal input impedance. This innovative approach makes it possible to obtain a very low noise and ultra-linear system with a very flat frequency response ranging from 30 Hz to 45 kHz (± 3 dB).
Connectivity and more All DS 20 input and output connections are equipped with high -quality XLR Neutrik* sockets for optimal signal integrity. Two independent Earthlying switches are planned for exit sockets A and B, thus eliminating the earth loops between equipment powered by different electrical networks. The design entirely isolated by DS 20 transformer guarantees impeccable performance, even in large -scale production environments.
Compact and robust construction The DS 20, ultra-compact, is designed to resist the rigors of life on the road thanks to an extrusion of thick and robust aluminum which protects electronics. The robustness of the enclosure is still reinforced by the implementation of solid rubber bumpers.
versatility The DS 20 Pro Splitter 2 allows you to send identical copies of symmetrical input signals to multiple discreet destinations thanks to its incredible frequency response from 30 Hz to 45 kHz (± 3 dB), to its Midas transformer designed on Measuring for optimal signal and galvanic insulation, and at its very intuitive design - all in a box ready for the road.
Strengths - The line level separator sends a unique input signal to 2 outputs. - Midas transformer made to measure for maximum signal integrity. - The high -margin safety design offers superior sound quality - Passive design does not require power supply. - High quality XLR NEUTRIK* connectors - Earth LIFT switches for each outing eliminate earth loop problems. - The entirely insulated design by transformer guarantees electrical separation. - very low noise and ultra-linear system for maximum signal integrity - Extruded aluminum box with rubber protective corners - Compact and robust design - Designed and manufactured in the United Kingdom
Technical characteristics:
Audio connections - Entrance: 1 x xlr, symmetrical - Input impedance: 1.9 k?, Symmetrical - Thru: 1 x xlr, symmetrical - A/B output: 2 x xlr, symmetrical
System - Frequency response: 30 Hz at 45 kHz, ± 3 dB - Dynamic range: +124 dB - THD +N: <0.03 % to 1 kHz, +4 dbu - S/B ratio:> 100 dB @ +4 dbu
Dimensions / Weight - Dimensions (W x D x H): 118 x 120 x 64 m (4.6 x 4.7 x 2.5 ") - Weight: 0.6 kg (1.3 lbs)
Brand reference number:000-C9D00-00010
