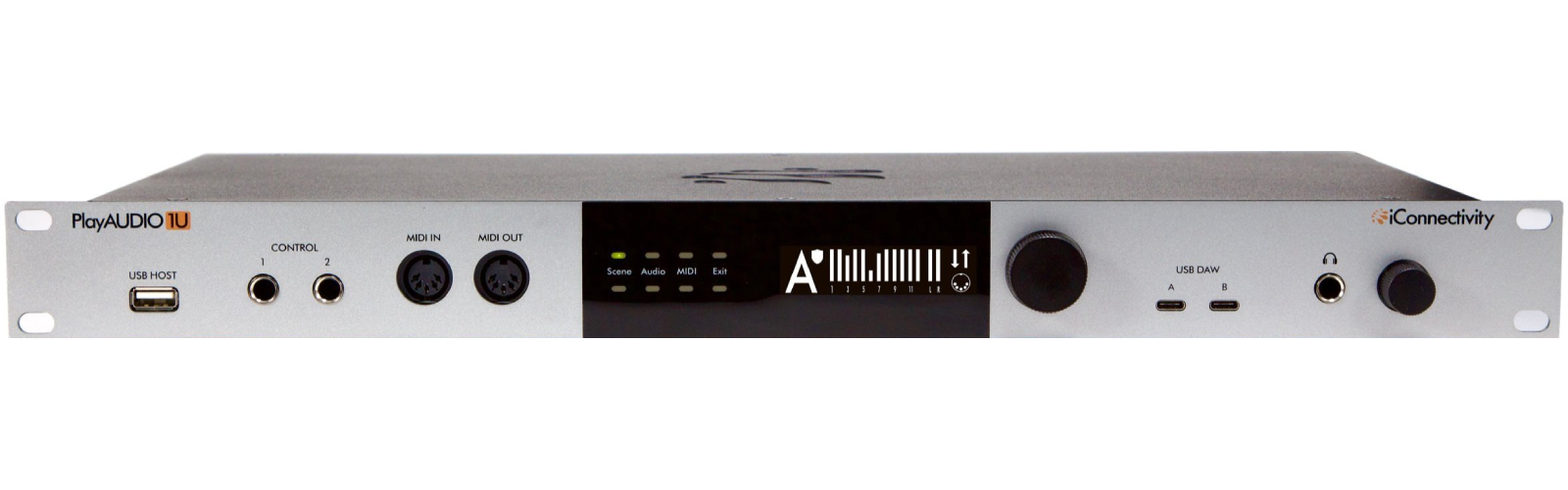

Essential Information About the PlayAUDIO1U Audio/MIDI Interface
- Multi-computer redundancy with seamless automatic switching in case of audio or MIDI failure.
- Built-in audio protection: emergency cut-off of main outputs and instant diagnostics via the display.
- Comprehensive MIDI connectivity: 4x MIDI I/O, 4 USB-MIDI host ports, RTP-MIDI with 12 virtual ports.
- Simple and reliable control: touch panel, user presets, and workflow optimized for live performance.
An Interface Born from the Stage, Designed for the Road
PlayAUDIO1U was designed to secure modern shows where computers control playback, virtual instruments, and automation. Inheriting iConnectivity's expertise in redundancy, it continuously monitors your streams and guarantees flawless audio continuity, even under pressure.
The Choice of Stage Managers, Musicians, and Playback Techs
Whether you are a musician, system engineer, or backliner, PlayAUDIO1U integrates at the heart of a touring rig to distribute MIDI, route signals, and protect the audience from a fatal glitch. Its controlled latency, direct panel control, and recallable presets speed up soundchecks and ensure reliability for every set change.
Features Designed for the Unexpected
Intelligent audio/MIDI redundancy. The PlayAUDIO1U listens to your computers via audio and/or MIDI; at the slightest software or hardware incident, switching occurs faster than you can hear. The main output cut function prevents any unwanted noise from reaching the front of house or monitors.
Extended connectivity and networking. Four physical MIDI I/O, four class-compliant USB-MIDI host ports for controllers and keyboards, plus an RTP-MIDI port offering 12 virtual ports over a single network cable: you centralize the entire stage wired or via Wi-Fi (with an appropriate network hub).
Advanced control, routing, and merging. A true MIDI matrix, the interface allows filtering, patch bay, flexible merging, and routing between multiple computers and mobile devices (Mac, Windows, iOS). User presets are instantly recalled from the touch panel, ideal for shows with evolving scenography.
Technical Specifications
MIDI Connectivity
- 4x MIDI inputs and 4x MIDI outputs
- MIDI interface, USB-MIDI, MIDI filtering, MIDI patch bay, MIDI routing matrix, MIDI merging
- RTP-MIDI network connector with 12 virtual MIDI ports, controllable via a single cable
- Wireless MIDI network functionality possible via Wi-Fi (standard Wi-Fi network hub required)
USB and Network
- 4x USB-MIDI host connectors with class-compliant support
- Multiple computers and mobile devices (Mac + Windows) connectable in parallel
- USB cable and Ethernet cable included
Control and Memory
- Touch control panel with LCD screen
- User-defined presets; up to 4 presets recallable from the panel
- Audio protection: main output cut-off and diagnostic information on screen
Compatibility and Software
- Class-compliant
- System requirements: macOS 10.11 or later, Windows 10 or later, iOS 8 or later (camera connection kit required)
- Auracle software included (download for Mac and Windows)
Power Supply and Format
- 12 V / 36 W power supply with interchangeable NA, EU, UK, and AU adapters
- Dimensions: 214 x 140 x 37 mm
- Weight: 992 g
