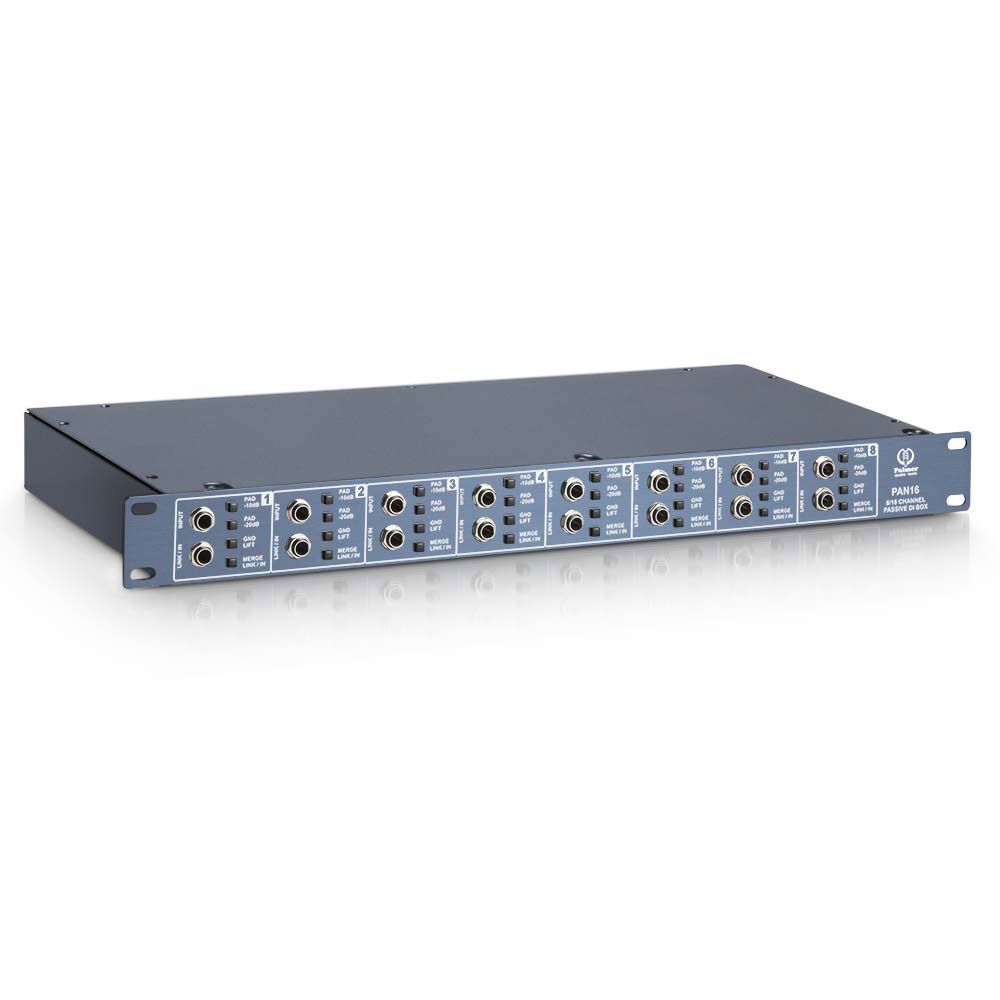

The Palmer PAN16 is an 8 channel passive DI box in a 19" 1U rack format. Through the special MERGE THRU/IN function,the parallel THRU output can be connected as a second input for looping the signal.The signal is fed with the one from the INPUT jack as a mono sum into the output. Thus, the PAN16 offers a maximum of 16 inputs, two PAD buttons enable an attenuation of 10, 20 or 30 dB. The outputs are on XLR connectors and are electrically isolated and balanced by a transformer. They are available with 8 additional THRU-sockets on the rear panel of the device.
Features • Type: passive • Number of Channels: 8 • Number of Inputs: 8/16 • Input Connections: 6.3 mm jack • Max. Input Level: +54 dBu • Input impedance: ((at) 60 Hz) 1 M Ohm • Input Attenuation: 0 / -30 dB • Number of Outputs: 4 (+ 4 Parallel Thru out) • Number of THRU Outputs per Channel: 2 • Output Connections: 6.3 mm TRS, XLR • Max Output Level: 54 dB • Output Impedance: 600 ohms • Frequency Response: 10 - 40,000 Hz • Transformer Balanced: yes • Translation Ratio (Ratio): 10 : 1 • Controls: PAD -10 dB, PAD -20 dB, Ground-Lift, Merge Thru/In • Housing Material: sheet steel • Housing Surface: powder coated • Width: 480 mm / 19" • Depth: 200 mm • Height: 45 mm/1 U
Brand reference number:PAN16
