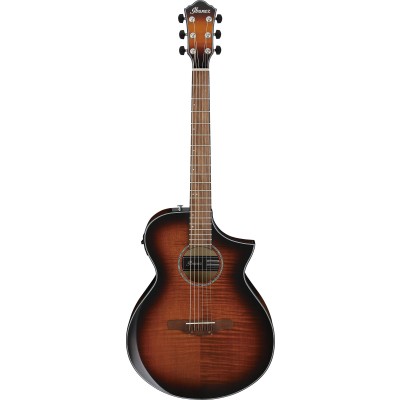

Ibanez AEWC400 Acoustic Guitar
Ibanez AEQ-SP2 Preamp with Built-in Tuner
The Ibanez AEQ-SP2 preamp offers excellent sound reproduction, tonal control, and ease of use.
Walnut Fingerboard
The walnut fingerboard provides a well-balanced tonal character from low to high frequencies.
AEWC Asymmetric Comfort Neck
The AEWC asymmetric comfort neck offers enhanced comfort and playability. It is also designed to make every note on the neck easily accessible and within reach.
Wide Frets
The wide frets contribute to smooth playing, especially for phrases involving a series of fast, successive notes.
Comfortable Body Specially Designed for AEWC
The AEWC body features ergonomic and specialized contour cuts, and the original Ibanez cutaway is a specially adapted design that offers superior access to higher fret positions.
Original AEWC Top-Loading Bridge
The original AEWC top-loading bridge provides a quick and easy method for changing strings.
Nyatoh Neck
The Nyatoh neck offers great richness in the mid and low frequencies.
Preamp
The neck side of the preamp is the top of the control panel. There is one knob and three buttons on the top of the control panel. The leftmost button is the tuner on/off switch. To its right are the bass, treble, and volume buttons.
Body Dimensions
- a: Length: 49.2 cm
- b: Width: 38.1 cm
- c: Maximum Depth: 10.1 cm
Guitar Body Diagram
- A: Body Length
- B: Maximum Body Width
- C: Maximum Body Depth
Neck Dimensions
- Scale Length: 634mm/25"
- a: Width: 43mm at Nut
- b: Width: 55mm at 14th Fret
- c: Thickness: 20mm at 1st Fret
- d: Thickness: 21mm at 7th Fret
- Radius: 400mmR
Guitar Neck Diagram- a: Neck width at the nut
- b: Neck width at the first fret
- c: Neck thickness at the first fret
- d: Neck thickness at the twelfth fret
- Radius: Fingerboard radius
Features:
- Body Shape: AEWC specially designed for comfort
- Top: Flamed maple
- Back and Sides: Flamed maple
- Neck: AEWC asymmetric comfort / Nyatoh neck
- Fingerboard: Walnut
- Bridge: Original AEWC top-loading walnut bridge
- Inlay: Offset white dots
- Rosette: Abalone
- Tuners: Chrome die-cast with black buttons (18:1 gear ratio)
- Number of Frets: 20
- Strings: Ibanez IACS6C
- String Gauge: .012/.016/.024/.032/.042/.053
- String Spacing: 11mm
- Factory Tuning: 1E, 2B, 3G, 4D, 5A, 6E
- Pickup: Fishman® Sonicore
- Preamp: Ibanez AEQ-SP2 with built-in tuner
- Output Jack: Balanced XLR and 1/4" outputs
- Battery: 1 x 9V
- Recommended Case: ICB540-BK
