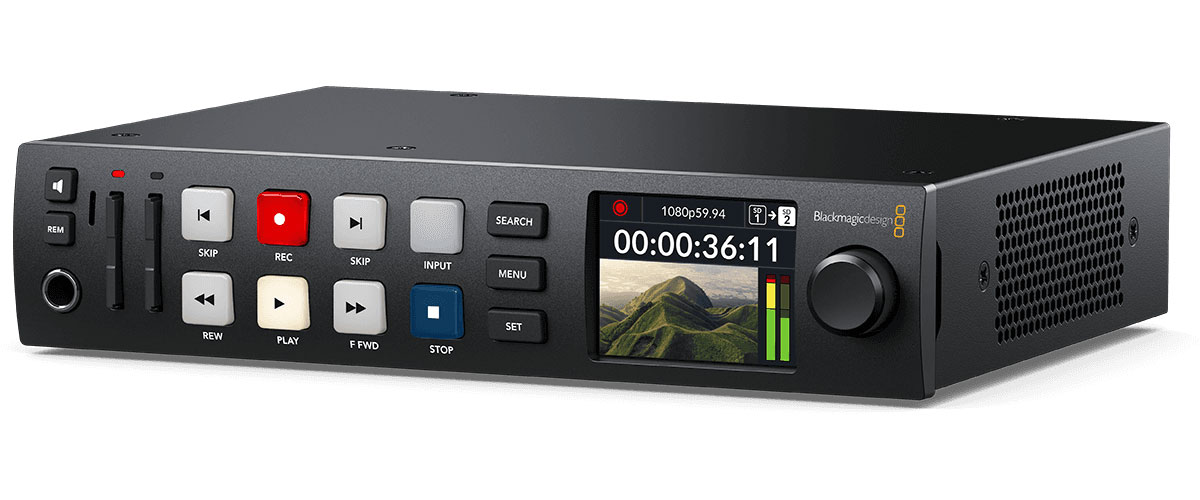

Key Information About the HyperDeck Studio HD Plus Recorder
- More control than the Mini model: color screen, jog wheel, built-in speaker, headphone jack, and advanced transport controls.
- 6G-SDI for ProRes recording/playback up to Ultra HD 30p, with HDR support.
- Fill & Key via dual 6G-SDI outputs up to 1080p60 for real-time overlays and graphics.
- HDMI input + dedicated 3G-SDI monitor output with OSD, RS-422 control, and broadcast DC XLR power.
The HD Plus, the natural evolution of the Mini
Designed for demanding control rooms and studios, the HyperDeck Studio HD Plus carries the DNA of the Mini and adds professional connections, Ultra HD 30p recording/playback, an SDI monitoring output, and HDR support to integrate into modern workflows.
For capture, playout, and mastering
Whether for broadcast, events, or live streaming, it ensures reliable recording on SSD/SD cards, precise timecode-based playout, and clear monitoring, with external RS-422 control and Ethernet protocol.
Production-focused features
Two SSD bays, two SD card slots, and a USB-C 3.0 port offer great media flexibility. Compatibility with ProRes, DNxHD/HR, and H.264 covers capture to playout, while 3D LUTs and HDR guarantee faithful monitoring results.
Technical Specifications
- SDI video inputs: 1
- SDI video outputs: 2
- SDI monitoring outputs: 1
- SDI data rates: 270 Mb, 1.5G, 3G, 6G
- HDMI 2.0 video inputs: 1
- HDMI 2.0 video outputs: 1
- Built-in speaker: Mono
- Audio output: 6.35 mm jack for headphones
- Display: 2.2-inch LCD
- Timecode connections: 1 x XLR input, 1 x XLR output
- Reference connections: 1 x BNC input, 1 x BNC output (Tri-Sync or Black Burst)
- SDI audio inputs: 16 embedded channels
- SDI audio outputs: 16 embedded channels
- HDMI audio outputs: 8 embedded channels
- HDMI audio outputs: 8 embedded channels
- Remote control: 1 x RS-422 input, 1 x RS-422 output
- Recorder configuration: user interface or Blackmagic HyperDeck Ethernet Protocol
- Ethernet: 1 Gb/s
- Computer interface: 1 x USB Type-C 3.0 (up to 5 Gb/s) for external recording, webcam output, configuration, and updates
- SD video standards: 525i59.94 NTSC, 625i50 PAL
- HD video standards: 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080PsF23.98/24/25/29.97/30
- 2K DCI standards: 2Kp23.98/24/25/29.97/30 DCI
- Ultra HD video standards: 2160p23.98/24/25/29.97/30
- 4K DCI standards: 4Kp23.98/24/25/29.97/30 DCI
- SDI compliance: SMPTE 259M, 292M, 296M, 424M, 425M level A and B, 2081-1, 2081-10, 2084, 2108-1
- SDI metadata: RP188 HD and CEA-708 subtitles; HDR metadata support over SDI
- Supported HDMI formats: SD 525i59.94/625i50; 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 2K DCI 23.98/24/25/29.97/30; 2160p23.98/24/25/29.97/30; 4K DCI 23.98/24/25/29.97/30
- Audio sampling: 24-bit / 48 kHz (broadcast)
- Video sampling: 4:2:2 YUV
- Color precision: 10-bit
- Color space: REC 601, REC 709, REC 2020; 33-point 3D LUT on SDI monitor output
- HDR support: HLG, ST2084 300/500/800/1000/2000/4000, ST2084
- Multi-rate: automatic detection of SD, HD, 6G-SDI
- Copy protection: HDMI input does not capture protected sources
- Media: 2 x 2.5" drive bays; 2 x SD card slots; 1 x USB-C 3.0 port for external recording SD/HD/2K DCI/Ultra HD/4K DCI
- Media types: 2.5" SATA-II/III SSDs; SD UHS-I and UHS-II cards
- Media formats: ExFAT (Windows/Mac) or HFS+ (Mac)
- Supported codecs: ProRes HQ/422/LT/Proxy up to 2160p30; ProRes 4444 playback up to 1080p60 with fill/key routing via SDI A/B; DNxHD 220x/145/45 (QuickTime and MXF) up to 60p HD; DNxHR HQX/SQ/LB (QuickTime and MXF) up to 2K DCI/2160p30; H.264 SDI 4:2:2 10-bit, H.264 high/medium/low 4:2:0 8-bit up to 1080p60
- Built-in control panel: 16 transport/device buttons, electronic clutch jog wheel, 2.2" color screen
- External control: RS-422; start/stop via SDI and timecode; HyperDeck Ethernet Protocol; remote FTP file upload
- Included software: Blackmagic OS; Blackmagic HyperDeck Setup; updates at startup or via USB
- Operating systems: Mac 13.0 Ventura, Mac 14.0 Sonoma or later; Windows 10 64-bit
- Displays: 2.2" LCD for video, audio, timecode, and menus; LED indicators around SSD bays and above SD slots
- Power supply: 1 x internal 100-240 V AC 50/60 Hz; 1 x 12 V 4-pin DC XLR input
- Power consumption: 100 W max
- Optional accessories: HyperDeck Extreme Control
- Rack mounting: 1U rack
- Physical installation: 0 to 40 °C
- Physical specifications: HyperDeck Studio HD Plus
- Operating temperature: -20 to 60 °C
- Relative humidity: 0 to 90% non-condensing
- Warranty: manufacturer limited to 12 months
- Included: HyperDeck Studio HD Plus
