Features :

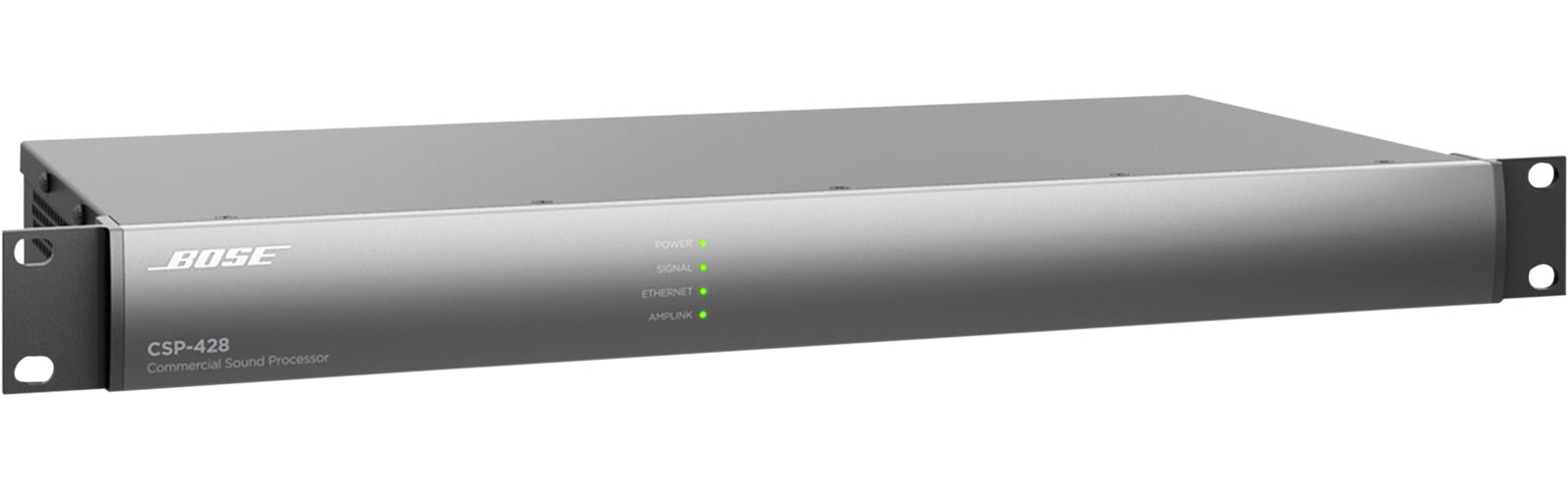

- Bose Pro CSP-428
- Splitter / Zoner
- Manufacturer Part Number: 808453-2110
- Audio Inputs: 4 analog
- Audio Outputs: 2 analog + 8 digital
- .
- Audio Processor: Bose Professional
- A/D & D/A Converters: 48 kHz / 24-bit
- Processor: 32-bit DSP + 456 MHz ARM CPU
- Computing Capacity: 3.6 GIPS / 2.7 GFLOPS
- Management Interface: Browser or Offline Software
- Control Application: ControlSpace Remote
- Schedule Programming: Source and Level Automation
- Mixing Function: Yes
- Sound Processing:
- Built-in DSP
- AutoVolume: Adjusts levels based on ambient noise
- SmartBass: Acoustically balanced bass
- Opti-Source Level Management: Equalizes the volume of 4 sources
- Opti-Voice: Seamless transitions between music and announcements
- Network Configuration: DHCP & Static IP
- .
- Frequency response: 20 Hz ? 20 kHz
- THD+N: <0.01% @ +4 dBu
- Audio latency: 900 µs (input ? output)
- Dynamic range: >115 dBa
- .
- Connections:
- Analog inputs: 2x 2 RCA + 2x Euroblock (mic/Line)
- Analog outputs: 2x Euroblock
- Digital output: 8 AmpLink channels (RJ-45)
- Control inputs: 9-pin Euroblock
- Control output: 2-pin Euroblock
- Mute control: 2-pin Euroblock
- Ethernet port: RJ-45 (10/100 Mbps)
- Power via connections: PoE & Phantom +48V
- .
- Power supply: 85-264 V AC, 50/60 Hz
- Power consumption: <30 W (max 45 W)
- Cooling: Active side ventilation
- Standard 19" Rack: 1U
- Dimensions: 483 x 215 x 44 mm
- Weight: 3.6 kg
