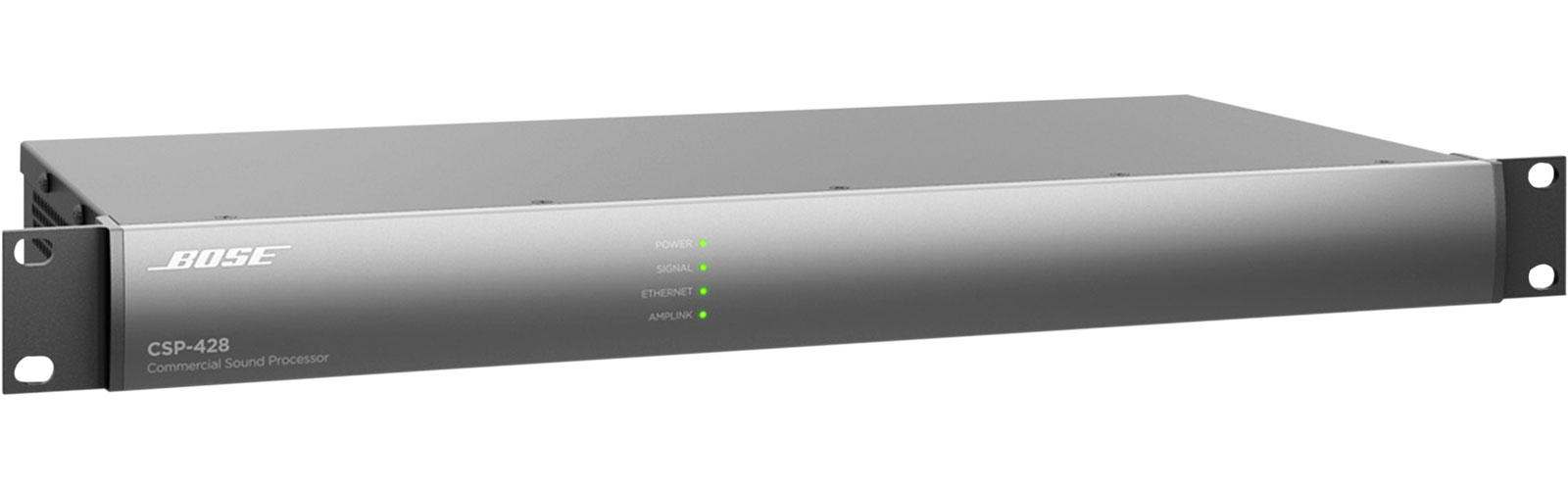

Name: CSP-428 Processor
Brand: Bose Professional
SKU: 422966
Price: 1309 EUR
Availability: OutOfStock

2 million items

in stock

3 year warranty

Free delivery

from 199€ purchase

30 days

satisfied or refunded

Description

Features :

- Bose Pro CSP-428

- Splitter / Zoner

- Manufacturer Part Number: 808453-2110

- Audio Inputs: 4 analog

- Audio Outputs: 2 analog + 8 digital

- .

- Audio Processor: Bose Professional

- A/D & D/A Converters: 48 kHz / 24-bit

- Processor: 32-bit DSP + 456 MHz ARM CPU

- Computing Capacity: 3.6 GIPS / 2.7 GFLOPS

- Management Interface: Browser or Offline Software

- Control Application: ControlSpace Remote

- Schedule Programming: Source and Level Automation

- Mixing Function: Yes

- Sound Processing:

- Built-in DSP

- AutoVolume: Adjusts levels based on ambient noise

- SmartBass: Acoustically balanced bass

- Opti-Source Level Management: Equalizes the volume of 4 sources

- Opti-Voice: Seamless transitions between music and announcements

- Network Configuration: DHCP & Static IP

- .

- Frequency response: 20 Hz ? 20 kHz

- THD+N: <0.01% @ +4 dBu

- Audio latency: 900 µs (input ? output)

- Dynamic range: >115 dBa

- .

- Connections:

- Analog inputs: 2x 2 RCA + 2x Euroblock (mic/Line)

- Analog outputs: 2x Euroblock

- Digital output: 8 AmpLink channels (RJ-45)

- Control inputs: 9-pin Euroblock

- Control output: 2-pin Euroblock

- Mute control: 2-pin Euroblock

- Ethernet port: RJ-45 (10/100 Mbps)

- Power via connections: PoE & Phantom +48V

- .

- Power supply: 85-264 V AC, 50/60 Hz

- Power consumption: <30 W (max 45 W)

- Cooling: Active side ventilation

- Standard 19" Rack: 1U

- Dimensions: 483 x 215 x 44 mm

- Weight: 3.6 kg

Brand reference number: BOSCSP428

Bose Professional CSP-428 Processor
