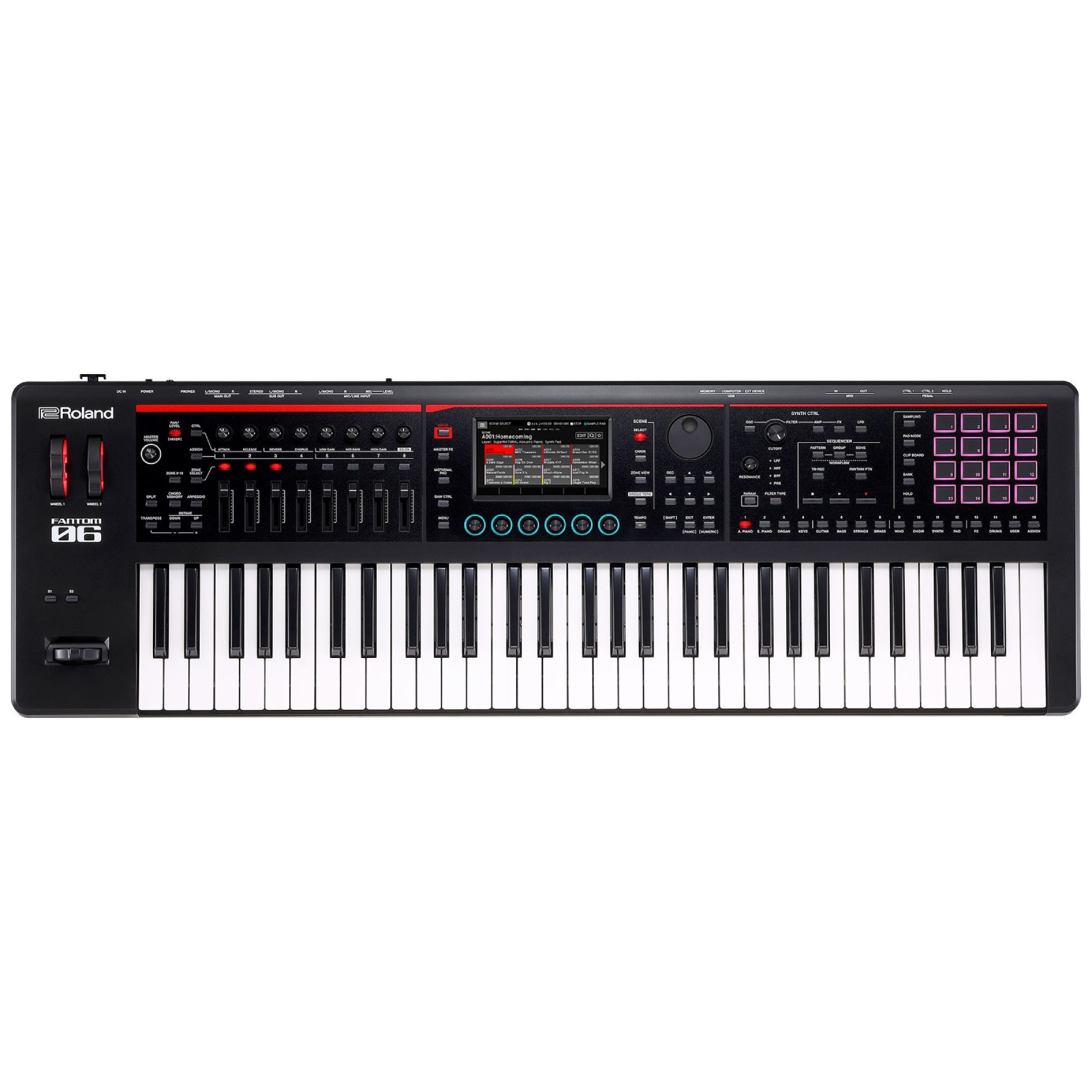

Roland FANTOM-06
Specifications
-61 Keys (with velocity)
-TONE
ZEN-Core
SuperNATURAL Acoustic
SuperNATURAL Acoustic Piano (EXSN01/03 Preload)
SuperNATURAL Electric Piano (EXSN02 Preload)
VTW Organ (Only ZONE2)
Various MODEL sound generators (Require adding EXM Series)
* ZEN-Core Tones and Model Tones can import and export.
* Backup file has compatibility with FANTOM-6/7/8, but it can read the enabled features only.
-Expansion
EXZ Series
EXSN Series
EXM Series
* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the FANTOM's internal memory.
-Parts
16 zones (Internal + External)
-Scenes
128 scenes x 4 bank
* The Scenes can import and export.
-Tones
3,500 tones or greater
90 Drum kits or greater
-Tone Remain
8 zones
* When "Scene Remain Switch" enabled.
Tone Remain does not apply to VTW Organ sounds.
-Favorite
Rating System: 4 steps (0-3)
-Tone Search/Scene Search
Rating, Character
-Effects
Multi-Effects: 16 systems, 90 types
Part EQ: 16 systems
Drum Part COMP: 6 systems
Insertion Effect: 2 systems, 90 types (Serial/Parallel connection selectable)
TFX: 1 system, 90 types
Input MFX: 1 system, 90 types
Chorus: 9 types
Reverb: 7 types
Master Compressor
Input Reverb: 7 types
Input EQ: 1 system
-Vocoder
Band: 13, 20, 32
Type: Mono, Stereo
Preset Setting: 10
User Setting: 20
-Scene Chain
Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
Set: 100
Marker: 36 (0-9, A-Z, a-z) per 1 Chain Set
-Sequencer
MIDI Tracks: 16
Group:16
Pattern: 8 (per each track)
Pattern Length: 32 measures
Recording Method: Realtime recording, Step recording, TR-REC
Editing Method: Piano roll edit (Touch Edit/Automation support), Microscope
Song: 1 (per Scene)
File format: Original, SMF export/import supported
* PAD Sampler trigger data can be recorded.
-Sampler
-Keyboard Multisample
Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF
Number of Samples: 2,048
Number of Multisamples: 128
Sampling Time: The maximum is 2 minutes 44 second (1 Sample).
* A total of approximately 256 MB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone.
-PAD Sampler
Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF import supported
Maximum Polyphony: 8
Number of Samples: 16 pads x 4 banks
Sampling Time: The maximum is 60 minutes (the equivalent of approximately 660 MB).
* A total of approximately 2 GB (including imported WAV files)
* When you use the PAD samples as KBD Wave, then you have to manipulation it.
-Internal Storage space for files
Size: 2 GB
-Others
-Rhythm Pattern
-Arpeggiator
-Chord Memory
-Motional Pad
-PAD Mode
Sample Pad,Note Pad,Partial Sw/Sel,DAW Control,Zone Mute,Zone Solo,Kbd Sw Group,Rhythm Pattern,Pattern,Variation Play,Group Play
-AIRA LINK(When connect to Roland AIRA MX-1)
-Controllers
Pitch Bend/Modulation lever *1
Assignable Switch x 2 (S1/S2)
Control knob x 8
Slider x 8
Wheel x 2 *1
Function knob x 6
Sound Modified knob x 2 *1
4 x 4 Pad
*1: 1,024 step editing support
It can be use with Cutoff, Resonance.
-Display
Graphic Type, 5.5" (1,280 x 720 dots), backlite LCD (Color/Touch screen, Screensaver, Wallpaper support)
-Connectors
Headphones jack: Stereo 1/4-inch phone type
MAIN OUT jacks (L/MONO, R) (1/4-inch TRS type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT STEREO (PHONES) jacks: Stereo miniature phone type PHONES Support
Mic Input jacks: 1/4 inch TRS type
Line Input jacks: (L/MONO,R) (1/4 inch phone type)
FOOT PEDAL jacks(HOLD, CTRL1, CTRL2)
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (AUDIO/MIDI)
External Device Port: A Roland A-49 or an A-PRO series MIDI Controller can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
-Audio Interface
Max 24 bit/96 KHz
Record 16 Stereo Channel
Playback 2 Stereo Channel
-External Memory
USB Flash drive (sold separately)
-Power Supply
AC Adaptor
-Power Consumption
1,300 mAh
-Dimensions
FANTOM-07: 1,006 (L) x 323 (P) x 95 (H) mm
-Weight
FANTOM-07: 6.0 kg
-Accessories
Owner’s Manual
AC adaptor
