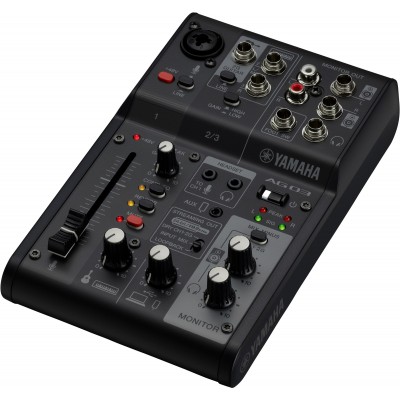

Essential Information About the Yamaha AG03MK2 USB Audio Interface / Mixer
- All-in-one solution: USB 2.0 audio interface and mini mixer for recording, streaming, or producing without complex setup.
- High-resolution audio: conversion up to 24-bit / 192 kHz for detailed recordings and clear mixes.
- Built-in processing: DSP effects (compressor, equalizer, reverb) to shape vocals and sources in real time.
- Compact format: 60 mm fader, comprehensive connectivity, and USB-powered, ideal for home studios as well as mobile setups.
An AG Designed for Modern Creation, at the Heart of the Compact Range
The Yamaha AG03MK2 embodies the spirit of the "AG" consoles: interfaces aimed at creators, capable of bridging microphones, instruments, and stereo sources while remaining easy to operate. This MK2 version modernizes the workflow with a USB-C port and connectivity adapted to current uses, whether for music production, podcasting, voice-over, or live streaming.
For Whom and For What: Vocals, Instruments, and Streaming in One Step
Designed for musicians, streamers, and content creators, the AG03MK2 allows connection of a studio microphone (phantom power +48 V), a guitar/bass with Hi-Z input, as well as line sources and a mobile device via mini-jack. Its 60 mm fader facilitates quick adjustments, and multiple outputs (jack and RCA) simplify integration with studio monitors, a recorder, or a hi-fi system.
Key Features: Control, DSP, and Practical Connectivity
Preamps, Pad, and Phantom Power
The mic/line input on the XLR/jack combo accepts both dynamic and condenser microphones thanks to the switchable +48 V phantom power. A switchable attenuator pad helps manage high-level signals and maintain a comfortable headroom before clipping, useful for powerful vocals or certain line sources.
DSP Effects and Footswitch FX Bypass
The DSP effects (compressor, equalizer, reverb) provide a more "finished" vocal sound right from recording or streaming. For live situations, the FX Bypass function can be controlled via an optional footswitch (not included), useful for quickly toggling between processed and dry sound.
Mobile Compatibility
The AG03MK2 can operate with an iPad via an optional camera connection kit (not included), making it a relevant choice for recording or streaming on the go while maintaining real mixing control.
Technical Specifications
Type / Conversion
- Combined USB 2.0 audio interface and mixer
- Resolution: 24-bit / 192 kHz
Processing and Control
- Switchable +48 V phantom power
- Switchable attenuator pad
- DSP effects: compressor, equalizer, reverb
- 60 mm fader
- FX Bypass (via optional footswitch)
Connectivity
- 1x mic/line input XLR/jack combo
- 1x instrument input (Hi-Z)
- 2x line inputs 6.3 mm jack (input 2 switchable between instrument and line)
- 2x line outputs 6.3 mm jack
- 2x line outputs RCA
- Stereo headphone output 6.3 mm jack
- Footswitch connection
- 2x mini-jack 3.5 mm headphone connections (earphones and microphone)
- Auxiliary stereo mini-jack 3.5 mm input
- USB-C port
Power / Included Software
- Powered via USB: 5V, 500mA
- Included: Steinberg Cubase AI
Dimensions / Weight / Finish
- Dimensions: 129 x 63 x 202 mm
- Weight: 0.8 kg
- Color: Black
