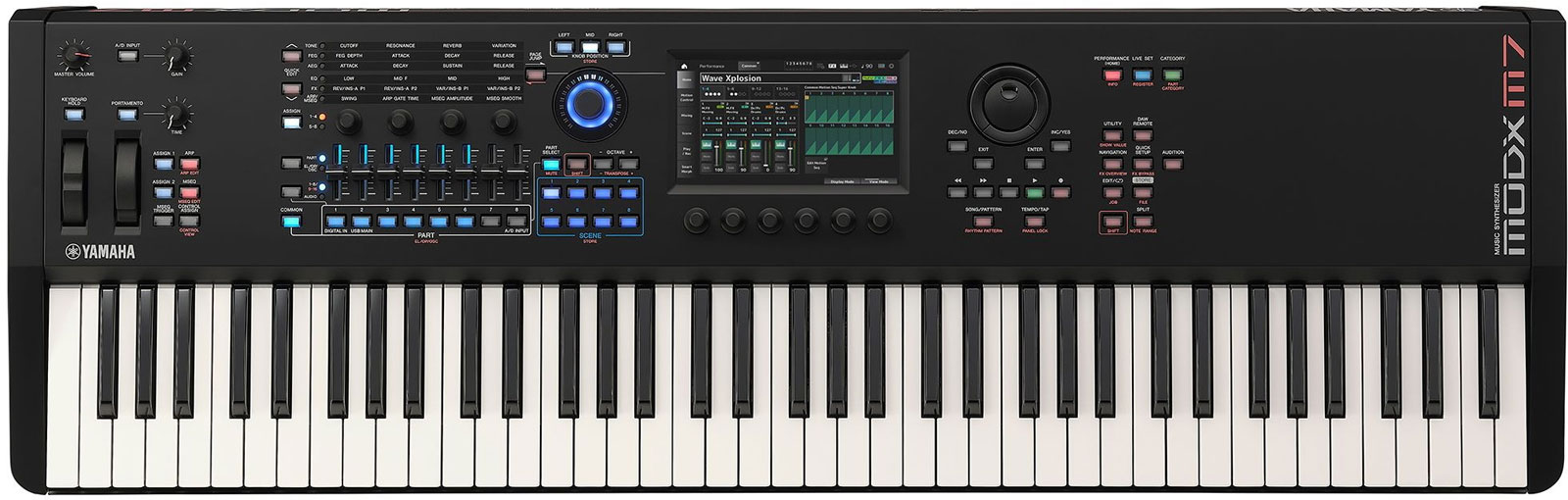

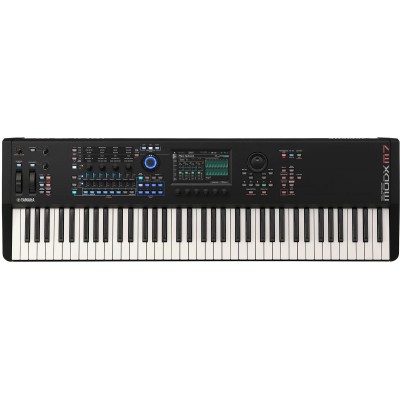

Discover the Yamaha MODX M7, an innovative stage synthesiser that pushes the boundaries of sound. Designed for demanding artists, it combines three complementary sound engines in a unified expressive canvas. Versatile, powerful and intuitive, it becomes the heart of your performances and your mobile studio.
Three sound engines in perfect harmony
The MODX M7 is not just a single-mode synth: it features the
AWM2,
FM-X and
AN-X engines, which interact harmoniously under the direction of the Motion Control Synthesis Engine. The result? Unparalleled expressive richness: you can move from a realistic acoustic sound to a crystalline FM texture, then slide into vintage analogue warmth in a single stroke. Each note breathes, evolves and transforms with fluidity.
Touch, control and stage performance
The 76-key FSB (Fully Balanced Semi-Weighted) keyboard offers an ideal compromise between responsiveness and playing comfort, perfect for both stage and studio sessions. The reinforced chassis provides optimised stability, while the
8 faders,
6 display knobs,
scene switches and central
Super Knob give you direct access to critical settings. Whether live or in the studio, you can shape your sounds without compromise.
Sound capacity and multidimensional creation
With up to
268 voices of cumulative polyphony, 10.7 GB of samples and 1.9 GB of user memory, the MODX M7 handles the densest textures without compromise. The
16-track sequencer, combined with
10,922 preset arpeggios and real-time modulation capabilities, allows you to improvise or compose with total freedom. Every parameter can be changed live for organic and dynamic transitions.
DAW integration and efficient workflow
With its
multi-channel USB port and
MIDI 2.0 compatibility, the MODX M7 integrates seamlessly into your computer environment. The included Cubase AI bundle and ESP (Expanded Softsynth Plugin) provide a seamless bridge between hardware instrument and virtual studio. Edit your sounds, save your banks, play live — without friction.
Technical Specifications
Here are the technical details of the
Yamaha MODX M7, designed to satisfy demanding musicians:
Keyboard & format
- Keys: 76 FSB keys (Semi-Weighted, Fully Balanced)
- Velocity sensitive: Yes
- Split / Layer: Split and layer keyboard
- Dimensions: 1089 × 347 × 117 mm
- Weight: 7.6 kg
- Colour: Black
Sound engines & polyphony
- Architecture: AWM2 + FM-X + AN-X, driven by the Motion Control Synthesis Engine
- AWM2: 128 voices, 10.7 GB of internal waveforms + 1.9 GB of user samples
- FM-X: 128 voices, 8 operators, 88 advanced FM algorithms
- AN-X: 12 voices, 3 oscillators, 1 noise generator
- Maximum cumulative polyphony: 268 voices
Effects, filters & modulation
- Filters: 13 types available
- Effects: 91 insert effects (Groups A & B), 91 variations, 13 reverbs
- Equalizers: 5-band master equaliser, 2- to 3-band part equalizers
- Real-time modulation: Assignable controls, Super Knob, dynamic curves
Rhythm & sequencing functions
- Sequencer: 16 tracks, 128 patterns & 128 songs
- Arpeggiator: Up to 8 simultaneous parts, 10,922 built-in arpeggios + 256 customisable
Connectivity & interfaces
- Audio outputs: 2 × 6.35 mm TRS jacks (L/Mono & R)
- A/D audio inputs: 2 × 6.35 mm TRS jacks (L/Mono & R)
- Headphone output: 6.35 mm TRS jack
- MIDI I/O: 2 × 5-pin DIN ports
- Pedal inputs: 4 × 6.35 mm TRS jacks (Volume, Expression, Sustain, Footswitch)
- USB: USB-A (device) / USB-B (host), multi-channel interface
Power supply & accessories
- Power supply: AC adapter included
- Accessories included: Quick start guide, cable, Cubase AI & ESP activation code
- Backup type: USB to Host, USB to Device
